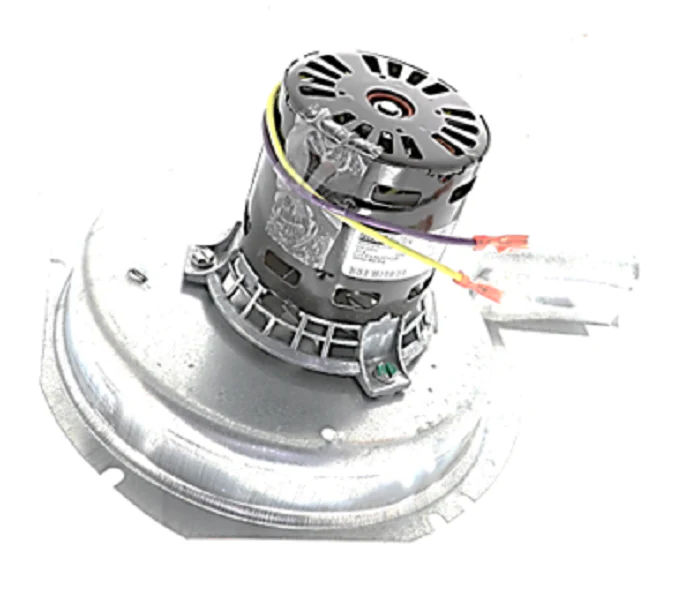

Heil Quaker ICP 1178641 Inducer Motor
The Heil Quaker ICP 1178641 Inducer Motor is a critical replacement draft inducer assembly designed for high-efficiency HVAC systems. Operating at 230V, this motor facilitates the essential pre-purge cycle by clearing residual combustion gases and ensuring proper venting before the ignition sequence begins. Built to handle the high-static pressure requirements of modern forced-air furnaces, the 1178641 motor features a precision-balanced impeller to minimize vibration and reduce shaft wear. For a contractor in the field, this OEM replacement motor ensures drop-in compatibility with specific ICP, Heil, and Tempstar units, eliminating the need for field modifications. Replacing a seized or noisy vent blower motor with this unit restores the pressure switch circuit integrity and prevents premature high-limit trips. Focused on durability, the assembly utilizes high-grade windings to withstand the thermal stresses of continuous duty cycles in demanding heating applications.
Key Benefits
- Direct OEM Compatibility: Engineered specifically for ICP-branded equipment to ensure precise electrical connections and mounting alignment.
- Efficient Combustion Management: Maintains the specific CFM output required to actuate the pressure switch and sustain safe furnace operation.
- Robust 230V Performance: Designed for higher voltage applications, providing consistent torque and reliable startups in cold-weather conditions.
- Minimized Operational Noise: Features a factory-balanced fan blade assembly to reduce mechanical resonance across the ductwork.
Common Questions
Will this motor fix a 3-flash error code on my ICP furnace?
A 3-flash code typically indicates a pressure switch failure. If the 1178641 inducer is not reaching the required RPM or has a blocked housing, it will not close the switch. Verify the motor is receiving 230V before replacing.
Does this assembly include the gasket and mounting hardware?
This item is the inducer motor assembly. It is professional practice to inspect the existing housing and flange; if the gasket is compressed or torn, a high-temp silicone or new gasket should be used to prevent flue gas leakage.
Can I use a 115V motor as a substitute for the 1178641?
No. This is a 230V inducer motor. Installing a lower voltage motor will cause immediate electrical failure and creates a significant safety hazard for the HVAC system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
