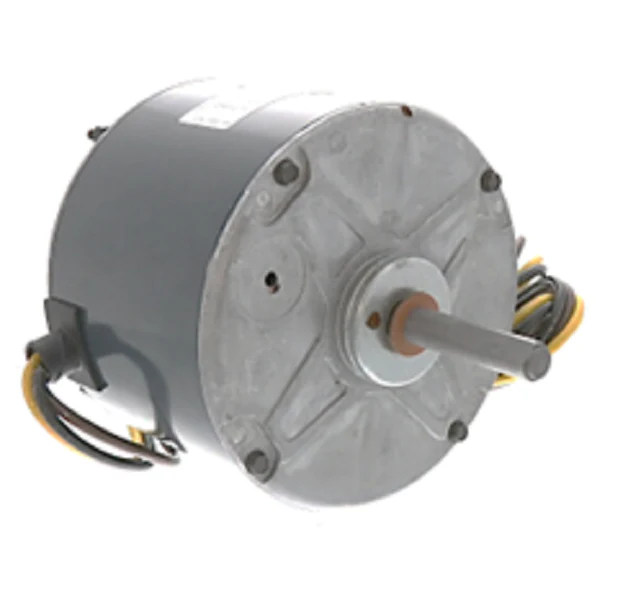

Heil Quaker ICP 1178390 Motor
The Heil Quaker ICP 1178390 Motor is a high-performance 1/10 HP condenser fan motor designed for precise compatibility with residential and light commercial HVAC units. This 48 NEMA frame size unit operates on 208-230Vac single-phase power, delivering a consistent 800 RPM at a 0.7 Amp draw. Engineered for vertical or horizontal applications, it features a thru-bolt mount and sleeve bearings to ensure quiet operation in high-ambient environments. As a Permanent Split Capacitor (PSC) motor, it provides the necessary torque for 1-speed condenser fans, maintaining airflow across the coils to prevent system overheating. The CW rotation (clockwise) is standard for many Heil, Tempstar, and Arcoaire packaged units. When performing a field replacement, ensure your capacitor?typically 5 MFD at 370V?is within tolerance to prevent premature winding failure. This motor is a direct OEM-spec solution for restoring factory-rated efficiency to International Comfort Products equipment.
Key Benefits- OEM-Spec Compatibility: Designed for an exact fit in Heil, Quaker, and ICP condenser assemblies, eliminating the need for bracket modifications.
- Efficient Thermal Management: The 800 RPM speed is optimized to pull ambient air over the condenser coils for maximum heat rejection.
- Robust Construction: Built with a 48 frame housing and sleeve bearings for long-term reliability in varying outdoor weather conditions.
- Standardized Mounting: Features a thru-bolt configuration that simplifies 180-degree or specialized mounting requirements.
What capacitor is required for this motor?
This 1/10 HP motor typically utilizes a 5 MFD / 370V capacitor. It is standard practice to replace the capacitor during motor installation to ensure the 208-230Vac power delivery remains stable.
Is this motor reversible?
No, this specific model is a dedicated CW rotation (Clockwise) motor. Always verify the rotation of your existing fan blade before ordering to ensure proper airflow direction.
Can this replace a ball bearing motor?
Yes, if the technical specifications match. The sleeve bearing design in this model is preferred for its quiet operation in residential condenser applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
