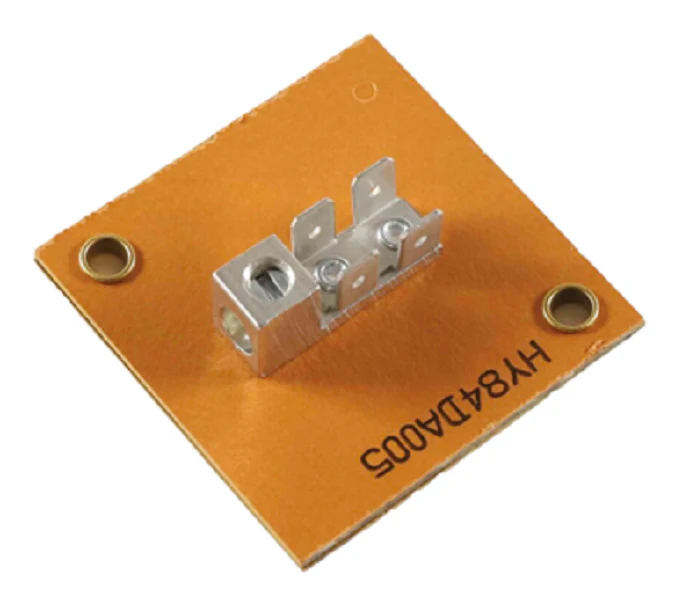

Heil Quaker ICP 1178164 Terminal Board
As a veteran tech, you know that a reliable electrical interface is the backbone of any rooftop or furnace system. The Heil Quaker ICP 1178164 Terminal Board is a genuine OEM replacement part designed for precision voltage distribution and wire management in residential and commercial equipment. This compact board, measuring 2 1/4" x 2 1/4" with a 1/2" profile, ensures stable low-voltage connections between the thermostat, safety switches, and the main integrated control board. Built to exact technical specifications, the 1178164 effectively replaces compromised blocks that suffer from carbon tracking or loose spade terminals. It is compatible with a wide range of brands under the ICP umbrella, including Tempstar, Comfortmaker, Arcoaire, and KeepRite. When troubleshooting intermittent signal loss or 24V circuit interruptions, swapping in this ICP HVAC control board component restores electrical integrity and simplifies future diagnostic testing for field contractors.
Key Benefits- Direct OEM Compatibility: Engineered specifically for HVAC terminal block applications in Heil, Quaker, and other ICP-family units.
- Stable Electrical Connectivity: High-density construction prevents terminal arcing and maintains consistent signal flow for 24V control circuits.
- Efficient Field Installation: Standard footprint allowed for rapid replacement, reducing labor time during service calls.
- Durable Construction: Built with robust insulating materials to withstand the thermal cycling common in furnace and air handler cabinets.
What are the physical dimensions?
The board measures approximately 2.25 inches in length and width, making it a standard fit for most ICP control enclosures.
Which brands is this compatible with?
This is a universal Heil Quaker replacement part that also services Tempstar, Comfortmaker, Day & Night, and Snyder General systems.
Does it include the wiring harness?
This item is the standalone terminal board. Use your existing wiring harness and ensure all spade connectors are tight for optimal performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
