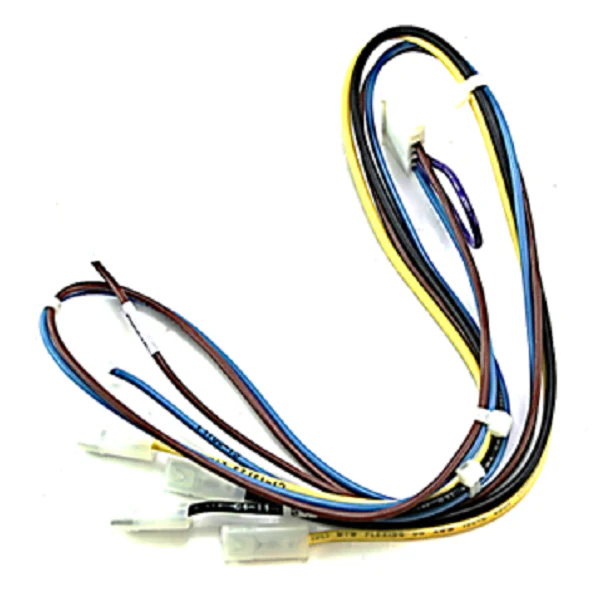

Heil Quaker ICP 1178160 Compressor Harness
The Heil Quaker ICP 1178160 Compressor Harness (also designated as CL01/COMP1) is a critical electrical assembly designed for seamless integration within International Comfort Products, Heil, and Tempstar residential air conditioning and heat pump systems. This OEM compressor wiring harness features a high-density lead set pre-terminated for a precision fit between the compressor unit and the main control board. Engineered to withstand the thermal stressors of the compressor compartment, the ICP 1178160 harness assembly ensures consistent electrical conductivity, facilitating the proper regulation of the refrigerant loop and protecting against circuit failure.
When performing a replacement, technicians rely on the Heil Quaker 1178160 for its plug-and-play compatibility, which eliminates the need for field-splicing and maintains the integrity of the original system design. As a genuine ICP replacement part, this harness is constructed with heavy-duty insulation to resist vibration-induced wear and environmental degradation. Utilizing the correct HVAC compressor lead assembly is essential for maintaining system efficiency and ensuring that diagnostic signals from the compressor are accurately transmitted to the system controller.
Key Benefits:
- OEM Precision: Guaranteed direct-fit compatibility for Heil, Quaker, and ICP-branded condensing units, ensuring correct pin configuration.
- Durable Construction: High-grade wiring rated for extreme temperature fluctuations and oily environments within the compressor housing.
- System Protection: Minimizes the risk of electrical arcing and short circuits by replacing brittle or corroded original wiring.
- Optimized Performance: Maintains low resistance for stable voltage delivery to the compressor motor.
Common Questions:
What models are compatible with the ICP 1178160 harness?
This harness is primarily used in residential split-system air conditioners and heat pumps under the Heil, Tempstar, and Comfortmaker brands. Always verify fitment using the specific model and serial number of your unit.
Can I use this for a CL01 or COMP1 designation?
Yes, the 1178160 is the official replacement for harnesses labeled with the CL01/COMP1 specification in ICP technical literature.
Does this harness include the compressor plug?
This assembly includes the necessary wires and connectors to bridge the gap between the compressor and the control interface as per the manufacturer's original wiring schematic.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
