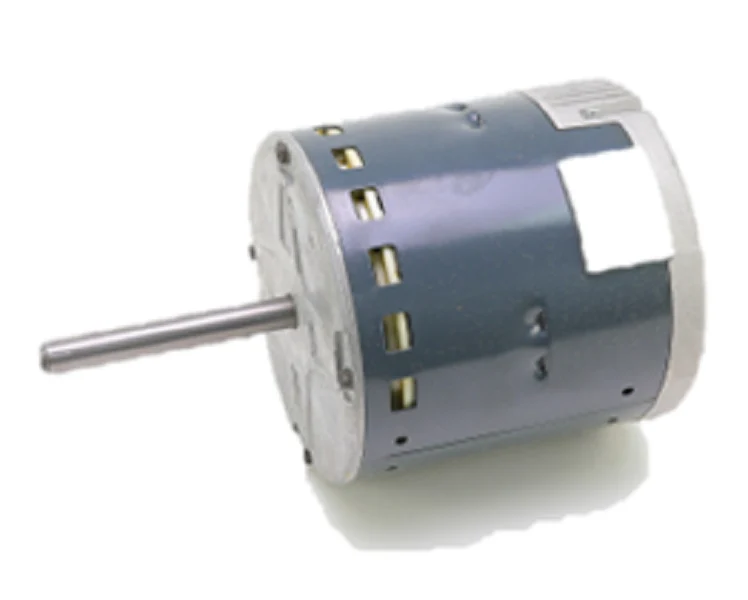

Heil Quaker ICP 1177997 Motor
The Heil Quaker ICP 1177997 Motor is a high-efficiency 1/2 HP blower motor engineered for precision air handling in residential and light commercial HVAC systems. Operating at 208-230V on a single-phase circuit, this 48 frame variable speed motor pulls 4.1 Amps, making it a reliable drop-in replacement for failed blower assemblies. It features a robust ball bearing design to minimize friction and extend the operational life of the internal windings. This specific HVAC blower motor replacement utilizes a band mount configuration and comes with a 1/2 inch by 4 inch shaft. Configuration is fixed for CCW rotation, ensuring compatible static pressure performance within ICP and Heil-Quaker furnaces or air handlers. For contractors performing a Heil furnace motor repair, this unit provides the precise torque and RPM modulation required to maintain factory-specified airflow across the heat exchanger or evaporator coil.
Key Technical Benefits- ECM-level efficiency: The variable speed architecture allows for optimized energy consumption during continuous fan operation.
- Industrial Durability: Equipped with sealed ball bearings to handle high axial and radial loads in vertical or horizontal orientations.
- OEM Compatibility: Designed specifically for high-volume ICP 1177997 applications, ensuring the 48 NEMA frame size aligns with existing mounting bands.
- Resilient Construction: The 1/2" x 4" shaft is machined for standard blower wheel hubs, reducing vibration and mechanical wear.
Is the ICP 1177997 a direct replacement for 48-frame induction motors?
Yes, provided the voltage and amperage requirements match. This 230V blower motor is designed for 48 frame band mounts commonly found in variable-speed ICP air handlers.
Can I reverse the rotation on this motor?
No, this unit is hard-wired for CCW rotation. Always verify the rotation of the existing blower wheel before installation to ensure proper CFM delivery.
Does this motor require a specific capacitor?
As a variable speed motor, the internal control module handles the phase shift and start torque; however, you should always inspect the control board leads for proper 208-230Vac signal input.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
