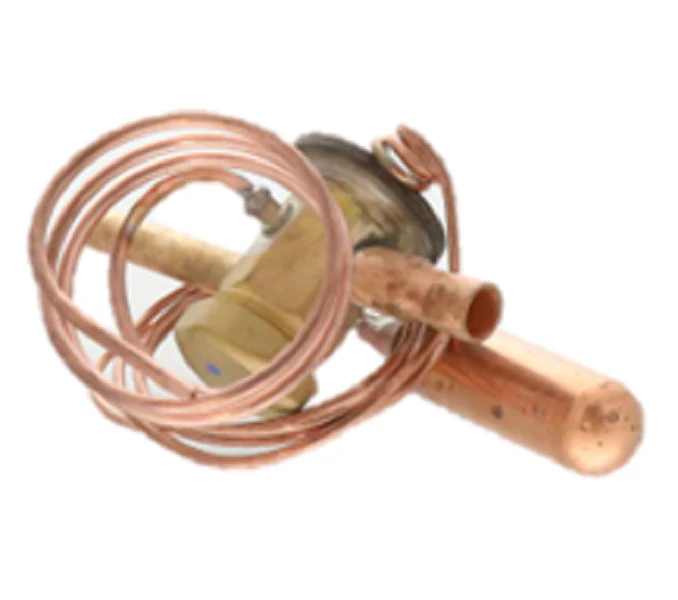

Heil Quaker ICP 1177749 Expansion Valve
The Heil Quaker ICP 1177749 Expansion Valve is a critical 6-ton thermal expansion valve (TXV) designed to optimize refrigerant flow within high-capacity residential and light commercial evaporator coils. This OEM component, also identified by part numbers EA36YD100 and EA36YP287, is engineered for precise superheat control, ensuring maximum heat transfer efficiency across various load conditions. For technicians performing an ICP replacement expansion valve installation, this unit offers a direct fit for Heil Quaker cooling systems, mitigating the risk of compressor slugging or evaporator freeze-ups. Its robust construction handles R-410A refrigerant applications, maintaining system stability during high-demand cycles. Utilizing an internally equalized TXV or external sensing bulb configuration?depending on the specific coil header?this valve ensures the HVAC expansion valve 6 ton specification meets the rigorous requirements of modern 13 to 16 SEER equipment. Proper installation of the 1177749 TXV is essential for restoring optimal pressures and enhancing the longevity of the entire refrigeration circuit.
- Direct OEM Compatibility: Verified replacement for Heil, Tempstar, and Comfortmaker units, ensuring plug-and-play installation without field modifications.
- Precision Refrigerant Metering: Maintains consistent superheat to protect the compressor from liquid floodback and improve seasonal efficiency.
- High Compatibility Range: Cross-references directly with EA36YD100 and EA36YP287 for streamlined inventory management.
- Durable Construction: Built to withstand high-pressure R-410A environments and thermal cycling in 6-ton tonnages.
Common Technical Questions
What are the symptoms of a failing 1177749 expansion valve?
Common indicators include hunting pressures, frost on the evaporator coil, or high superheat readings that prevent the system from reaching the desired setpoint despite a full refrigerant charge.
Is this 6-ton TXV compatible with R-22 systems?
No, this valve is specifically calibrated for the pressure-temperature characteristics of R-410A. Using it with R-22 will result in improper metering and potential system failure.
Does this valve include the sensing bulb and mounting hardware?
Typically, this OEM assembly includes the sensing bulb required for accurate suction line temperature monitoring to adjust the orifice opening.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
