Heil Quaker ICP 1177611 Motor

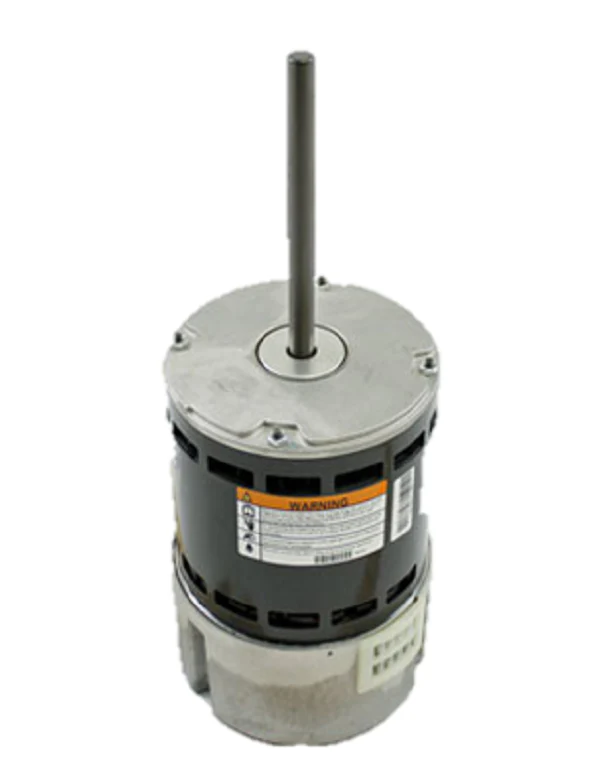

The Heil Quaker ICP 1177611 Blower Motor is a high-performance 1HP variable speed motor designed for direct replacement in ICP residential furnaces and air handlers. Operating on 208-230Vac single-phase power, this motor draws 7.6 Amps and features a standard 48 NEMA frame size. The ball bearing design ensures long-term reliability and quiet operation under high static pressure. This unit utilizes a band mount configuration and features a 1/2" x 4" shaft with CCW rotation. As an OEM HVAC blower motor, it maintains factory performance curves and efficiency standards. Contractors should verify the constant torque or constant airflow requirements of the existing control board before installation. The ICP 1177611 motor replacement is engineered for precision air delivery, ensuring the system meets the calculated CFM requirements for various ductwork layouts.
Key Benefits- ECM variable speed technology optimizes energy consumption and improves airflow management compared to permanent split capacitor motors.
- Ball bearing construction reduces frictional heat and extends the life of the single-phase blower motor.
- Direct drop-in compatibility for Heil, Quaker, and other ICP brands ensures the NEMA 48 frame fits existing mounting brackets.
- 4-inch shaft length provides the necessary clearance for standard blower wheels in high-efficiency furnace cabinets.
Is this motor compatible with 115V systems? No, this ICP 1177611 is specifically rated for 208-230V applications; using lower voltage will result in motor failure.
Can I use a different mounting style? This motor is designed for a band mount; if your current setup uses a torsion flex or lug mount, additional hardware may be required.
Does this motor include the control module? This unit is a complete variable speed blower motor assembly designed to integrate with the system's existing ECM controls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Heil Quaker ICP 1177611 Motor
The Heil Quaker ICP 1177611 Blower Motor is a high-performance 1HP variable speed motor designed for direct replacement in ICP residential furnaces and air handlers. Operating on 208-230Vac single-phase power, this motor draws 7.6 Amps and features a standard 48 NEMA frame size. The ball bearing design ensures long-term reliability and quiet operation under high static pressure. This unit utilizes a band mount configuration and features a 1/2" x 4" shaft with CCW rotation. As an OEM HVAC blower motor, it maintains factory performance curves and efficiency standards. Contractors should verify the constant torque or constant airflow requirements of the existing control board before installation. The ICP 1177611 motor replacement is engineered for precision air delivery, ensuring the system meets the calculated CFM requirements for various ductwork layouts.
Key Benefits- ECM variable speed technology optimizes energy consumption and improves airflow management compared to permanent split capacitor motors.
- Ball bearing construction reduces frictional heat and extends the life of the single-phase blower motor.
- Direct drop-in compatibility for Heil, Quaker, and other ICP brands ensures the NEMA 48 frame fits existing mounting brackets.
- 4-inch shaft length provides the necessary clearance for standard blower wheels in high-efficiency furnace cabinets.
Is this motor compatible with 115V systems? No, this ICP 1177611 is specifically rated for 208-230V applications; using lower voltage will result in motor failure.
Can I use a different mounting style? This motor is designed for a band mount; if your current setup uses a torsion flex or lug mount, additional hardware may be required.
Does this motor include the control module? This unit is a complete variable speed blower motor assembly designed to integrate with the system's existing ECM controls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
