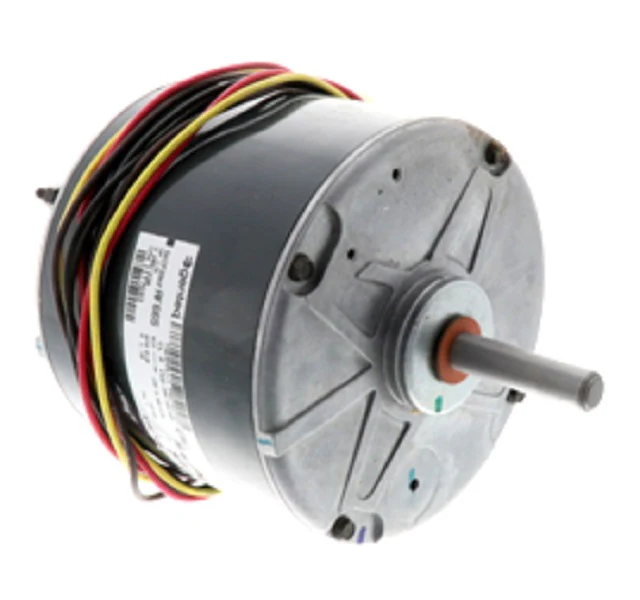

Heil Quaker ICP 1177593 Motor
The Heil Quaker ICP 1177593 Condenser Fan Motor is a high-reliability OEM replacement motor engineered for specific International Comfort Products (ICP), Heil, and Tempstar residential condensing units. Built on a 48 NEMA frame, this 1/5 HP motor operates on 208-230V, single-phase power, delivering a steady 810 RPM via a 2-speed configuration. This motor is a Permanent Split Capacitor (PSC) design, requiring a run capacitor (sold separately) to maintain electrical efficiency and torque. With a 1.1 Amp rating and clockwise (CW) rotation, it ensures optimal heat dissipation across the condenser coils. The sleeve bearing system and thru-bolt mounting allow for a direct, vibration-resistant installation in compatible HVAC cabinets, including models C4A442GKD100, C4A436GKD100, and C4A436GKD200. Using a genuine 1177593 motor ensures the original engineering specifications for airflow and static pressure are met without the need for field modifications.
Key Benefits for Field Installation:
- OEM Compatibility: Exact drop-in replacement for Heil Quaker and ICP units, eliminating the need for bracket modifications or shaft cutting.
- Multi-Speed Flexibility: Features 2-speed capability at 810 RPM to match original system performance maps.
- Industrial Build: Heavy-duty 48 Frame and thru-bolt mount design ensures stability and reduced decibel levels during operation.
- Efficient Thermal Management: 1.1 Amp draw prevents excessive heat buildup within the motor windings, extending the life of the condenser fan assembly.
Common Questions & Contractor Insights:
What is the rotation direction for the 1177593?
This motor is Clockwise (CW) rotation as viewed from the lead end. Always verify the fan blade pitch before mounting to ensure proper airflow direction.
Does this motor require a capacitor?
Yes, as a Permanent Split Capacitor (PSC) motor, it requires a specific MFD-rated run capacitor. Using an existing, weakened capacitor can lead to premature motor failure.
Will this motor work in 460V systems?
No, this component is strictly rated for 208-230Vac. Verified voltage at the contactor is necessary before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
