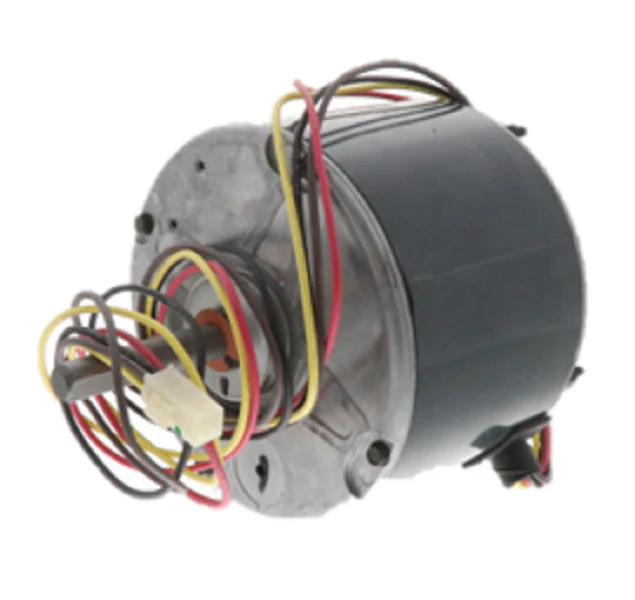

Heil Quaker ICP 1177472 Motor
The Heil Quaker ICP 1177472 Motor is a direct replacement condenser fan motor designed for high-efficiency operation in residential and commercial HVAC units. Rated at 1/8 HP and engineered for 208-230V single-phase applications, this PSC (Permanent Split Capacitor) motor operates at a steady 810 RPM. Built with a NEMA 48 frame and a sleeve bearing system, it ensures quiet operation and reliable heat dissipation during long run cycles. This 2-speed motor draws 0.9 Amps and features a CW (clockwise) rotation with a thru-bolt mount configuration for precise alignment within the fan shroud. As an authentic OEM replacement motor, the ICP 1177472 maintains the integrity of the original system's airflow requirements, preventing compressor overheating and ensuring optimal refrigerant head pressure. If you are replacing a seized or failing condenser motor, verify your capacitor ratings and lead lengths to ensure a seamless field installation.
Key Benefits for Technicians:
- Precise OEM Fit: Drop-in replacement for Heil Quaker and ICP units, utilizing standard thru-bolt mounting for fast installation.
- Optimized Performance: The 810 RPM low-speed design reduces ambient noise levels while maintaining critical condenser airflow.
- Efficient Power Draw: A low 0.9 Amp rating helps maximize the overall SEER rating of the condensing unit.
- Durable Construction: Features a sleeve bearing design specifically tuned for vertical shaft-up or shaft-down condenser applications.
Common Installation Questions:
What is the frame size and mounting style for the 1177472?
This motor uses a standard 48 NEMA frame and utilizes thru-bolt mounting, which is common in many Heil, Tempstar, and Comfortmaker condensing units.
Does this motor include the run capacitor?
Typically, PSC motors require a specific MFD-rated capacitor. You should always check the label on the 1177472 motor and replace the capacitor during installation to ensure the single-phase motor starts correctly under load.
Is this a multi-speed motor?
Yes, this is a 2-speed motor, allowing for better control over the refrigeration cycle and improved efficiency during lower load conditions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $300.40
-65%$300.40
$105.14Heil Quaker ICP 1177472 Motor
The Heil Quaker ICP 1177472 Motor is a direct replacement condenser fan motor designed for high-efficiency operation in residential and commercial HVAC units. Rated at 1/8 HP and engineered for 208-230V single-phase applications, this PSC (Permanent Split Capacitor) motor operates at a steady 810 RPM. Built with a NEMA 48 frame and a sleeve bearing system, it ensures quiet operation and reliable heat dissipation during long run cycles. This 2-speed motor draws 0.9 Amps and features a CW (clockwise) rotation with a thru-bolt mount configuration for precise alignment within the fan shroud. As an authentic OEM replacement motor, the ICP 1177472 maintains the integrity of the original system's airflow requirements, preventing compressor overheating and ensuring optimal refrigerant head pressure. If you are replacing a seized or failing condenser motor, verify your capacitor ratings and lead lengths to ensure a seamless field installation.
Key Benefits for Technicians:
- Precise OEM Fit: Drop-in replacement for Heil Quaker and ICP units, utilizing standard thru-bolt mounting for fast installation.
- Optimized Performance: The 810 RPM low-speed design reduces ambient noise levels while maintaining critical condenser airflow.
- Efficient Power Draw: A low 0.9 Amp rating helps maximize the overall SEER rating of the condensing unit.
- Durable Construction: Features a sleeve bearing design specifically tuned for vertical shaft-up or shaft-down condenser applications.
Common Installation Questions:
What is the frame size and mounting style for the 1177472?
This motor uses a standard 48 NEMA frame and utilizes thru-bolt mounting, which is common in many Heil, Tempstar, and Comfortmaker condensing units.
Does this motor include the run capacitor?
Typically, PSC motors require a specific MFD-rated capacitor. You should always check the label on the 1177472 motor and replace the capacitor during installation to ensure the single-phase motor starts correctly under load.
Is this a multi-speed motor?
Yes, this is a 2-speed motor, allowing for better control over the refrigeration cycle and improved efficiency during lower load conditions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
