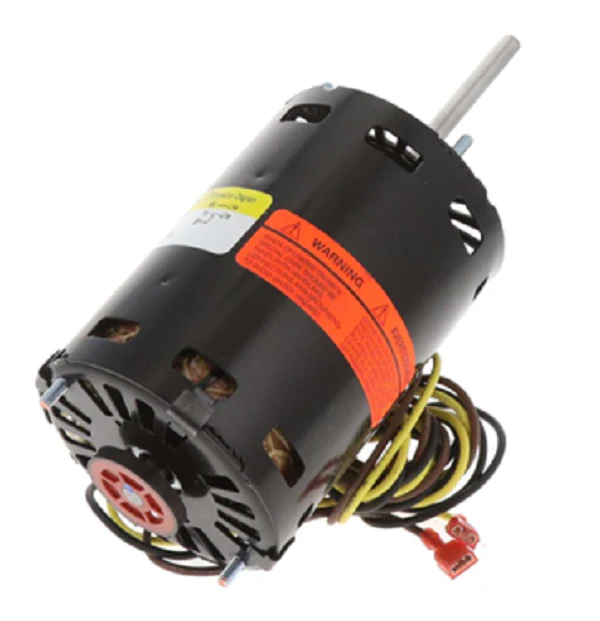

Heil Quaker ICP 1177464 Motor
When you are troubleshooting a failed furnace startup, the ICP 1177464 Draft Inducer Motor is often the first component to inspect. This 1/16HP, 460Vac single-phase motor is a precise OEM replacement designed to pull air through the heat exchanger, ensuring the correct air-to-fuel ratio for safe and efficient combustion. Operating at a high-speed 3450 RPM, this Heil Quaker inducer motor is a single-speed, permanent split capacitor (PSC) unit that draws a nominal 0.25 Amps. Its ball bearing construction provides superior durability compared to sleeve bearing alternatives, especially in high-heat environments where lubrication breakdown is common. The CW rotation and thru-bolt mounting system make it a direct drop-in for a wide range of commercial and residential packaged units. By utilizing a 41177464 HVAC draft inducer, you maintain the system's pressure switch integrity and prevent nuisance trips caused by restricted airflow or degraded motor windings.
Key Benefits for HVAC Technicians- OEM Precision: Guaranteed compatibility with ICP furnace replacement parts, eliminating the need for field modifications or bracket adjustments.
- Industrial Grading: Rated for 460Vac applications with a 1/16HP output, specifically engineered for the demanding duty cycles of commercial Heil Quaker motors.
- Enhanced Reliability: The ball bearing design reduces mechanical friction and extends the service life in high-ambient temperature ventilation assemblies.
- Optimized Combustion: Sustains a consistent 3450 RPM to ensure the pressure switch closes reliably and exhaust gases are properly vented.
What are the symptoms of a failing ICP 1177464 motor?
Common indicators include a humming sound without motor rotation, a seized shaft due to bearing failure, or the furnace failing to proceed past the initial purge cycle because the pressure switch does not close.
Can I use a 230V motor as a substitute for the 1177464?
No. This is a 460V dedicated motor. Attempting to install a lower voltage motor will result in immediate winding failure and potential control board damage.
Does this motor include the fan orifice or inducer wheel?
This part number refers specifically to the motor itself. When replacing, verify that your existing inducer wheel is not rotted or damaged, as it must be transferred or replaced separately to ensure proper static pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
