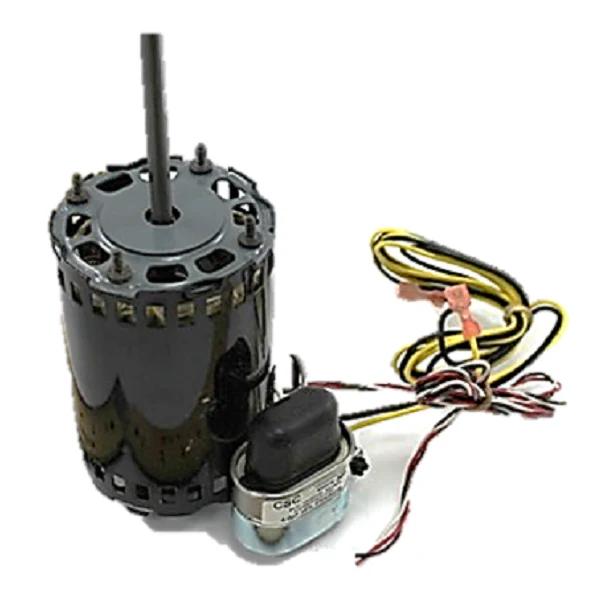

Heil Quaker ICP 1177463 Motor
The Heil Quaker ICP 1177463 Motor is a high-performance, original equipment manufacturer (OEM) replacement designed specifically for heavy-duty draft inducer applications in 460V HVAC systems. This 1/16 HP Permanent Split Capacitor (PSC) motor is engineered to withstand the demanding thermal environments of commercial and residential heating units, providing the reliable static pressure required for safe combustion gas venting. Operating at a fixed speed of 3450 RPM, this single-phase unit ensures immediate airflow response, maintaining the pressure switch circuit stability necessary for furnace ignition sequences.
Technicians will appreciate the internal ball bearing construction, which offers superior longevity compared to sleeve alternatives by reducing frictional heat and resisting shaft side-loading. The motor is configured with a thru-bolt mount for secure, vibration-dampened installation and follows a clockwise (CW) rotation as viewed from the lead end. With a low current draw of 0.25 Amps at 460Vac, this 1177463 ICP motor provides an efficient field-fix for failed venter assemblies in Heil, Tempstar, and Comfortmaker equipment. The robust design is optimized for 60Hz operation, ensuring a drop-in fit for contractors looking to restore system integrity without modifying the existing mounting bracket or wiring harness.
Key Benefits:- OEM Precision: Guaranteed compatibility with ICP-branded equipment, eliminating the risk of incorrect static pressure or mounting misalignment.
- Enhanced Durability: Equipped with dual ball bearings to ensure smooth operation and extended service life in high-cycle furnace environments.
- Optimized Performance: Delivering a consistent 3450 RPM to ensure proper venting of combustion gases and reliable pressure switch activation.
- Efficient Integration: Features a standard thru-bolt mount and simplified single-phase wiring for rapid field replacement by HVAC professionals.
What are the primary symptoms of a failing ICP 1177463 inducer motor?
Common indicators include a continuous "humming" sound upon a call for heat without the motor spinning, high-pitched bearing squealing, or the furnace failing to progress past the inducer cycle due to an open pressure switch.
Can this motor be used on 208-230V systems?
No. This is a dedicated 460Vac motor. Applying lower voltage will result in insufficient torque and eventual winding failure. Always verify the transformer output before installation.
Does this motor require a separate run capacitor?
This is a Permanent Split Capacitor (PSC) motor. While many 1177463 assemblies utilize an internal or pre-mounted capacitor, technicians should always verify the capacitance rating (typically 4 MFD / 370V) on the existing unit to ensure optimal torque performance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
