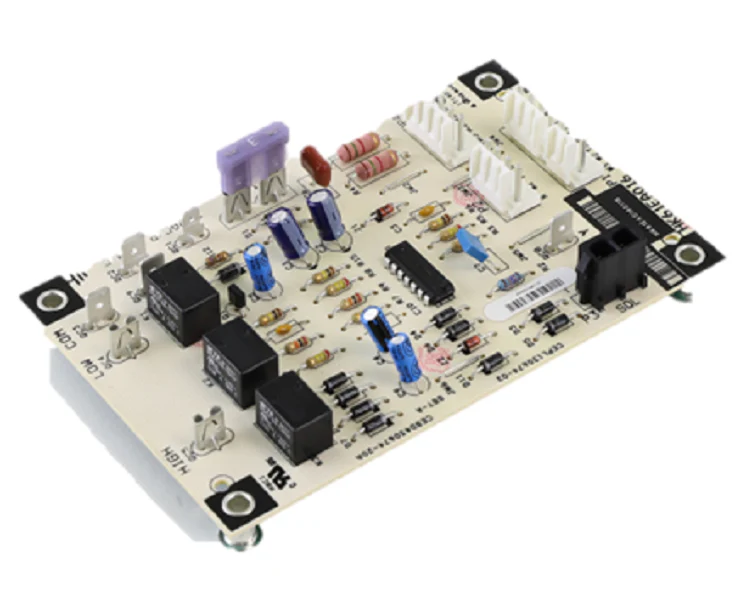

Heil Quaker ICP 1177315 Circuit Board
The Heil Quaker ICP 1177315 Circuit Board is an essential OEM replacement component engineered for precision control in split system air conditioners and heat pumps utilizing X-13 blower motors. This dual capacitor control board facilitates seamless communication between the thermostat and the high-efficiency constant torque motor, ensuring the system maintains correct airflow across varying static pressures. By integrating the motor control logic and capacitor housing into a single HVAC replacement part, it minimizes wiring complexity within the blower cabinet and reduces points of failure for field technicians.
Designed to meet rigorous International Comfort Products (ICP) engineering standards, the 1177315 board supports the multi-tap speed requirements of constant torque X-13 motors. This ensures consistent performance in both heating and cooling modes, protecting the compressor from liquid slugging while maintaining indoor comfort. For contractors performing a blower motor control board replacement, this genuine Heil Quaker parts component provides the exact electrical specifications required to restore factory-level efficiency and diagnostic signaling.
Key Benefits- OEM Compatibility: Specifically designed for Heil Quaker and ICP equipment to ensure direct terminal-for-terminal replacement.
- Enhanced Motor Protection: Regulates voltage and capacitance for X-13 motors, preventing premature winding failure.
- Simplified Installation: Integrated dual cap circuit board design streamlines the electrical layout within the air handler or furnace.
- Optimized Airflow: Precision logic supports correct speed tap engagement for better dehumidification and heat transfer.
- Rugged Reliability: Built with industrial-grade traces and soldering to withstand high-vibration HVAC environments.
Which motor types are compatible with the ICP 1177315?
This board is specifically designed for X-13 constant torque motors. It is not intended for use with standard PSC motors or fully communicating ECM 3.0 motors without proper conversion kits.
Does this board include the capacitor?
This is the circuit board dual cap assembly. While it houses and controls the capacitance required for X-13 motor startup and operation, always verify if the specific microfarad rating matches your existing motor requirements during installation.
What are the symptoms of a failing 1177315 control board?
Common indicators include the indoor blower failing to start during a call for cooling, the motor "hunting" or cycling rapidly, or visible thermal damage to the traces on the 1177315 circuit board.
