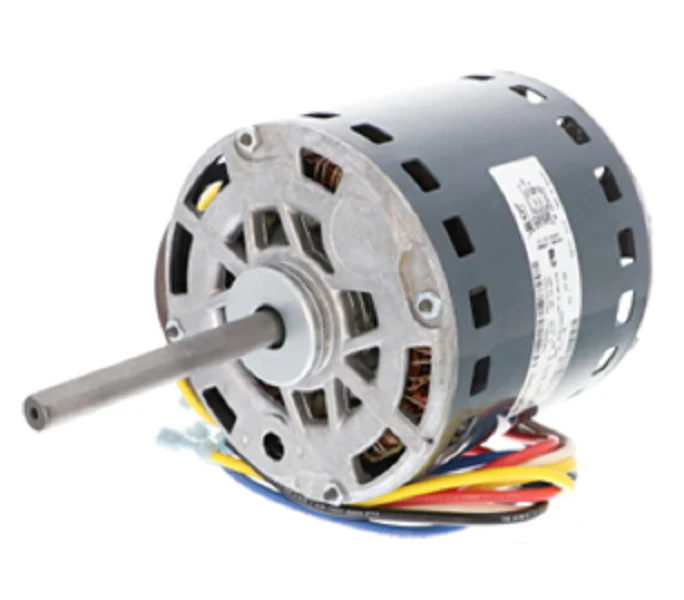

Heil Quaker ICP 1177176 Motor
When you are in the field dealing with a downed blower, you need a drop-in replacement that functions without a headache. The Heil Quaker ICP 1177176 Motor is a professional-grade 115V 3/4 HP furnace blower motor designed for high-static applications. Operating at 1075 RPM, this 4-speed motor provides the torque necessary to maintain proper static pressure across the evaporator coil and heat exchanger. It is a direct OEM replacement motor for various ICP-manufactured units, including brands like Tempstar, Comfortmaker, and Arcoaire. This PSC furnace motor features a standard 48-frame diameter and uses a 10 MFD 370V capacitor for reliable starts. Whether you are troubleshooting air stratification issues or a seized bearing, this multi-speed blower motor replacement offers the airflow versatility required for precise CFM balancing during the commissioning phase of a repair.
Key Benefits- Multi-Speed Versatility: The 4-speed tap configuration allows for precise CFM adjustments to meet specific heating and cooling airflow requirements.
- Direct OEM Compatibility: Verified for use in Heil, Quaker, and ICP-branded air handlers and furnaces, ensuring proper mounting and shaft alignment.
- High Torque Output: Rated at 3/4 HP and 1075 RPM to handle diverse ductwork configurations and filtration loads.
- Standardized Frame: Features a 48-frame design, simplifying the swap-out process in the blower housing.
What capacitor does this motor require?
This motor is engineered to operate with a 10 MFD / 370V run capacitor for optimal phase shift and motor efficiency.
Is the rotation reversible?
Most variations of the 1177176 are set for CCW or reversible lead configurations; always verify the rotation of the existing fan wheel before final wiring.
Can this replace a lower horsepower motor?
While a 3/4 HP motor can often replace a 1/2 HP motor if the frame and voltage match, you must ensure the amperage draw does not exceed the control board’s relay rating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
