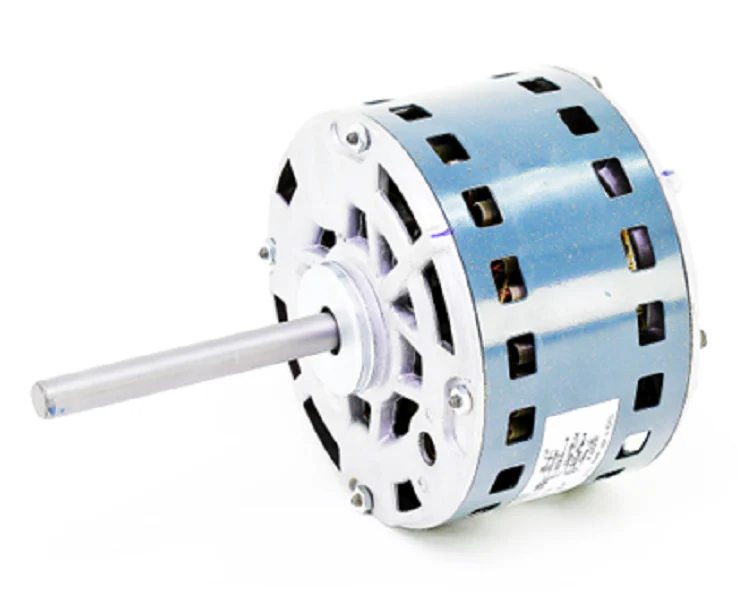

Heil Quaker ICP 1177174 Blower Motor
The Heil Quaker ICP 1177174 Blower Motor is a direct-drive, permanent split capacitor (PSC) motor designed for reliable performance in residential furnaces and air handlers. Operating at 115 volts with a 1/5 HP rating, this single-phase motor delivers a consistent 1075 RPM to maintain optimal airflow across the heat exchanger. Built to NEMA 48 frame specifications, it features a standard shaft diameter and length compatible with diverse ICP, Comfortmaker, and Heil blower assemblies. The open air over (OAO) enclosure design relies on the system’s airflow for cooling, ensuring the internal windings remain within thermal limits during high-static operation. When replacing a failed OEM blower motor, this unit provides the precise torque profile and electrical characteristics required to match the original manufacturer’s CFM requirements, preventing premature heat exchanger fatigue or refrigerant slugging due to improper airflow.
Key Benefits for Technicians
- OEM Compatibility: Precision-engineered as a direct replacement for ICP part 1177174, ensuring no modifications to the mounting bracket or wiring harness are necessary.
- Efficient Air Delivery: The 1075 RPM multi-speed capability allows for fine-tuning the static pressure to meet specific ductwork demands.
- Thermal Protection: Equipped with internal automatic reset thermal overload protection to prevent motor burnout during restricted airflow conditions.
- Standardized Frame: The 48-frame design facilitates easy installation in tight furnace compartments without clearance issues.
Common Installation Questions
What capacitor is required for the 1177174 motor?
This 1/5 HP motor typically requires a 5 MFD / 370V run capacitor. Always verify the microfarad rating on the new motor nameplate, as using an incorrect capacitor will lead to overheating and winding failure.
Can this motor be used in a downflow furnace application?
Yes, provided the mounting orientation aligns with the manufacturer's specifications and the motor is installed in an open air over environment to facilitate proper heat dissipation.
Is this a multi-speed or single-speed motor?
The 1177174 is typically a multi-speed motor, allowing for different lead wires to be used for heating and cooling airflow requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
