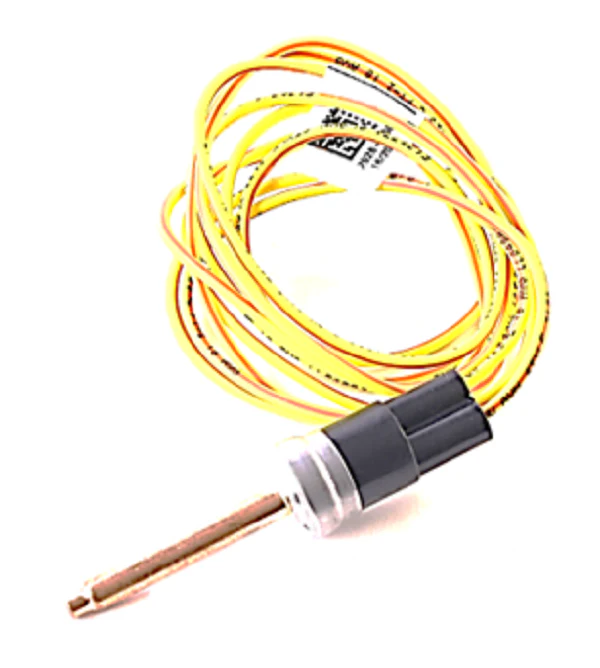

Heil Quaker ICP 1177095 Pressure Switch
The Heil Quaker ICP 1177095 Pressure Switch is a critical OEM replacement part designed for high-precision monitoring of succulent line pressures. As a dedicated low pressure switch, this component acts as a primary safety interface to protect the compressor from thermal overload and mechanical failure caused by refrigerant loss or restricted evaporation. Engineered for R-410A systems, the ICP 1177095 features a factory-calibrated set point to ensure the contactor circuit opens precisely when system pressure drops below safe operating thresholds (typically 50 PSI cutout / 70 PSI reset on many International Comfort Products applications), effectively preventing the compressor from running in a vacuum or under high-heat, low-density gas conditions.
For field technicians, this HVAC pressure switch offers seamless integration into Heil, Quaker, Tempstar, and Comfortmaker condensing units. The heavy-duty diaphragm construction and vibration-resistant electrical terminals provide long-term reliability against the thermal cycling and environmental stressors common in split-system environments. Utilizing an OEM pressure switch like the 1177095 ensures that the system maintains its original engineering specifications for safety limit control, avoiding the drift and calibration issues often found with universal aftermarket alternatives. Whether you are troubleshooting a short-cycling compressor or performing a full system restoration, this switch is the technical standard for maintaining refrigerant pressure safety and operational integrity.
Key Benefits:- Direct OEM Compatibility: Engineered specifically for International Comfort Products (ICP) equipment, ensuring exact fitment and terminal alignment for Heil Quaker models.
- Compressor Protection: Prevents terminal damage and lubrication failure by interrupting the 24V control circuit during low refrigerant charge scenarios.
- Precision Calibration: Factory-set cutout and cut-in points eliminate the need for field adjustment and ensure consistent system safety.
- Rugged Build Quality: High-grade materials designed to withstand the high-side heat and moisture typical of residential and commercial condensing units.
- Simplified Serviceability: Standardized threading and electrical spade connectors allow for rapid pressure switch replacement during emergency service calls.
- How do I know if my ICP 1177095 is faulty? Use a multimeter to check for continuity across the terminals; if the system has sufficient static pressure but the switch remains open, the internal diaphragm or contacts may have failed.
- Is this switch compatible with R-22 systems? This specific model is calibrated for the higher pressure gradients of R-410A; always verify your system?s refrigerant type before installation.
- Will this switch fix a system that won't start? If your condenser motor isn't engaging, it may be due to this switch detecting a low pressure state caused by a leak. Always check manifold gauge readings before condemning the switch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
