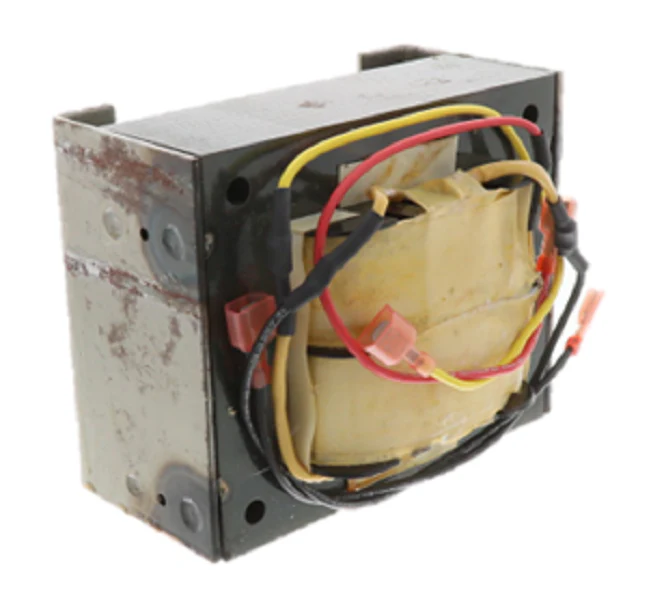

Heil Quaker ICP 1177023 Transformer
When you are dealing with high-voltage industrial HVAC systems, the Heil Quaker ICP 1177023 Transformer is a critical step-down transformer for maintaining control circuit integrity. This heavy-duty 460V to 230V transformer is engineered for precision power conversion, featuring a primary voltage of 460V and a secondary output of 230V. With a substantial 1564VA capacity, it provides the robust power distribution required for larger commercial units and complex air handling systems. As an OEM replacement part, it ensures an exact physical and electrical match, preventing the field-modification headaches common with universal alternatives. This ICP HVAC transformer is built to minimize energy loss and handle the inductive loads of contactors and relays without excessive heat buildup. Whether you are performing an HVAC system upgrade or a 1:1 swap in an ICP, Heil, or Quaker unit, this transformer’s construction ensures the stable secondary voltage necessary for reliable HVAC troubleshooting and long-term industrial operation.
Key Benefits- OEM Compatibility: Precision-engineered for a drop-in HVAC unit replacement in Heil Quaker and ICP systems.
- High Power Rating: A 1564VA capacity supports extensive control circuits and heavy-duty secondary components.
- Industrial Voltage Conversion: Efficiently steps down 460V primary power to 230V secondary supply for industrial applications.
- Robust Construction: Designed for minimal vibration and high thermal efficiency in demanding HVACR environments.
Is the 1177023 a multi-tap transformer?
No, this is a dedicated 460V primary to 230V secondary transformer. Always verify your line voltage with a multimeter at the primary terminals to ensure a strict 460V supply before installation.
What would cause this 1564VA transformer to fail prematurely?
The most common causes for failure in high-capacity transformers are secondary-side shorts in the contactor coils or wiring. Before swapping the part, check all 230V control circuits for rodent damage or grounded wires to avoid blowing the new unit.
Can this be used as a universal replacement for other 1.5kVA transformers?
While the 1564VA and voltage specs may align, this part is specifically mounting-profile matched for ICP/Heil Quaker equipment. Verify the physical footprint and terminal orientation against the existing HVAC replacement parts to ensure a safe fit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
