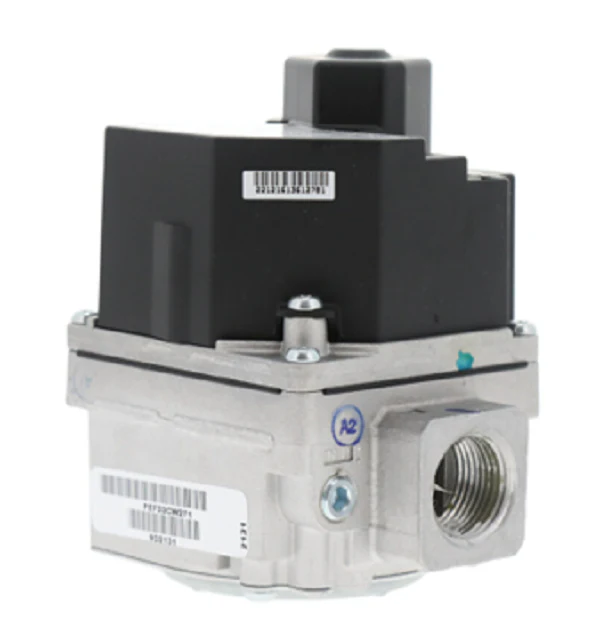

Heil Quaker ICP 1176390 Valve
The Heil Quaker ICP 1176390 Valve is a critical OEM replacement component designed for high-efficiency, multi-stage heating systems. Specifically manufactured by White Rodgers as model 36H54-485, this 2-stage gas valve provides precise automated control over the fuel supply to ensure optimal combustion cycles. Engineered for robust performance in International Comfort Products (ICP) equipment, including Heil, Tempstar, and Comfortmaker units, it operates on a standard 24 VAC control circuit. This fast-opening gas valve is factory-configured for natural gas but is versatile enough for LP conversion when field-required, making it a staple for contractors managing a variety of residential furnace repairs.
Built with redundant and main solenoid valves, the 36H54-485 maintains a constant outlet pressure through its integrated regulator. Technicians will appreciate the multipoise mounting capability, allowing for installation in various orientations without compromising safety or flow. With a high-stage outlet pressure range of 2.5 to 5.0 inches W.C. and a low-stage range of 1.0 to 3.5 inches W.C., this replacement gas valve is essential for restoring the design-specified AFUE rating of high-performance HVAC systems.
Key Benefits:
- OEM Compatibility: Exact drop-in replacement for ICP 1176390 and White Rodgers 36H54-485, ensuring a proper fit and safe operation.
- Dual-Stage Efficiency: Supports low and high-fire operation to maximize fuel economy and indoor comfort.
- Redundant Solenoids: Features built-in safety redundancy to prevent gas leakage in the event of a single valve failure.
- Flexible Installation: Compact design with 1/2" NPT inlet and outlet ports, compatible with both Hot Surface Ignition (HSI) and Direct Spark Ignition (DSI) systems.
Common Questions:
Is the 1176390 valve compatible with Propane (LP) systems?
Yes, while this valve is factory-set for natural gas, it is designed to be field-convertible to LP using the manufacturer-specified conversion kit.
Can I use this to replace a single-stage gas valve?
No, this is a two-stage gas valve managed by a multi-stage control board. Installing a 2-stage valve in a single-stage system will lead to performance issues and potential safety lockouts.
What are the electrical requirements for this part?
The valve operates on a 24V, 50/60 Hz circuit, with a typical current draw of approximately 0.540A for 2-stage operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
