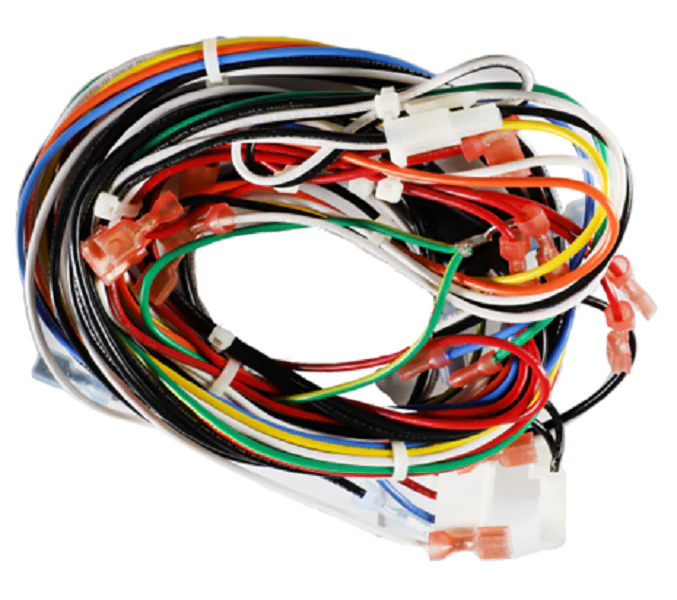

Heil Quaker ICP 1175881 Wire Harness
The Heil Quaker ICP 1175881 Wire Harness is a critical electrical interface designed for the precise transmission of 24V and 120V signals across high-efficiency furnace and air handler platforms. Engineered as a genuine OEM replacement part, this harness ensures low-resistance connectivity between the integrated furnace control (IFC) board, pressure switches, and the inducer motor assembly. In the field, technicians encounter intermittent faults or "no-heat" calls often traced to brittle insulation or loose "pin-out" connections within the HVAC wiring assembly. This harness eliminates the risk of high-impedance joints that can cause phantom diagnostic codes or premature failure of the hot surface igniter. As a direct-fit ICP furnace wire harness, it maintains factory-spec lead lengths and terminal polarities, allowing for a clean installation without field modifications or wire splicing. Utilizing a high-grade harness wire 1175881 is essential for maintaining the safety circuit integrity within International Comfort Products equipment, including Tempstar, Comfortmaker, and Heil units.
Key Benefits
- OEM Compatibility: Specifically engineered for a precise fit with Heil, Quaker, and ICP-branded air handlers and furnaces, ensuring all furnace replacement parts align with factory schematics.
- Enhanced Signal Reliability: High-quality insulation prevents voltage drops and cross-talk between the 24V control circuit and the 120V power supply.
- Direct-Fit Connectors: Features pre-loaded multi-pin plugs and spade terminals to minimize labor time and prevent wiring errors during a control board or inducer swap.
- System Longevity: Protects sensitive electronic components from the erratic current spikes often associated with degraded or corroded field-repaired wiring.
Common Questions
Can I use this harness to troubleshoot a "limit switch open" fault?
Yes. If you have continuity through the limit switch but the board still senses an open circuit, the ICP 1175881 harness may have a broken internal conductor or a loose terminal pin that requires replacement.
Is this wire harness compatible with other ICP brands like Tempstar or Arcoaire?
This is an International Comfort Products (ICP) universal part used across several brands, including Heil, Tempstar, and Comfortmaker. Always match the specific part number to your equipment?s parts list.
Do I need specialized tools for installation?
No specialized crimpers are required as this is a pre-assembled HVAC wire harness. Use standard needle-nose pliers for seating terminals and ensure all locking tabs on the plastic connectors are fully engaged.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
