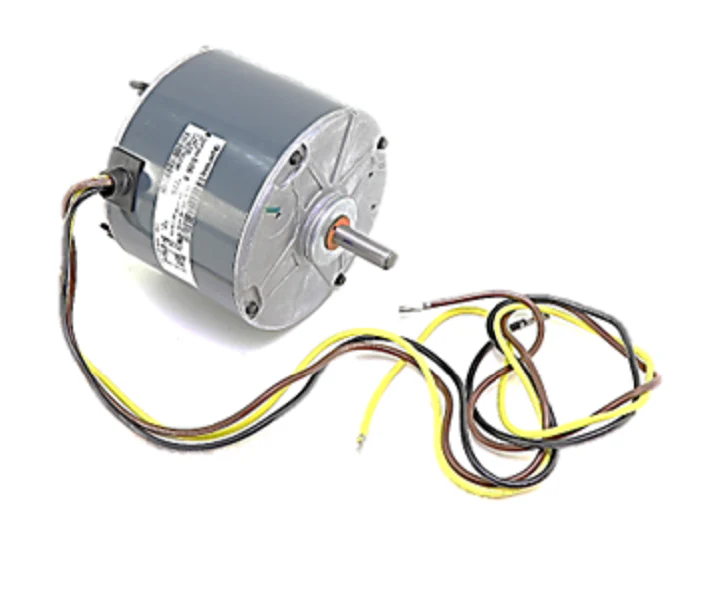

Heil Quaker ICP 1175587 Motor
The Heil Quaker ICP 1175587 Motor is a heavy-duty Permanent Split Capacitor (PSC) condenser fan motor designed for high-efficiency heat pump and air conditioning applications. Engineered with a 48 NEMA Frame Size and a Sleeve Bearing system, this 1/5 HP motor operates at a fixed 825 RPM speed, ensuring consistent airflow across the condenser coils. It runs on 208-230V single-phase power at 0.95 Amps, making it a reliable direct replacement for failed OEM condenser motors in ICP, Heil, and Tempstar units. The thru-bolt mount configuration and Clockwise (CW) rotation provide a secure fit and correct blade pitch alignment during installation. Specifically built to handle high-ambient outdoor temperatures, this condenser fan motor replacement is essential for maintaining proper refrigerant head pressure and system longevity in demanding residential or light commercial environments.
Key Benefits for Technicians:- Precise OEM Fit: Direct replacement for 1175587, eliminating the need for mounting bracket modifications in the field.
- Efficient Performance: Low 0.95 Amp draw reduces energy consumption while maintaining the 1/5 HP torque required for heavy-duty fan blades.
- Quiet Operation: The sleeve bearing design offers superior vibration dampening compared to ball bearings, resulting in quieter condensing unit performance.
- Standardized Housing: The 48 Frame diameter ensures compatibility with standard wire guards and motor mounts.
What capacitor is required for the ICP 1175587?
This PSC motor typically requires a 5 MFD / 370V run capacitor; always verify the microfarad rating on the motor nameplate during installation to prevent overheating.
Can this motor be used in a CCW application?
No, this specific model is designed for CW rotation. Reversing rotation on a non-reversible PSC motor can lead to immediate winding failure or poor heat exchange.
Is the 1175587 suitable for multi-speed fans?
This is a dedicated 1-speed motor. If your logic board requires multi-tap speed control, ensure the system is configured for single-speed operation before wiring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $349.29
-65%$349.29
$122.25Heil Quaker ICP 1175587 Motor
The Heil Quaker ICP 1175587 Motor is a heavy-duty Permanent Split Capacitor (PSC) condenser fan motor designed for high-efficiency heat pump and air conditioning applications. Engineered with a 48 NEMA Frame Size and a Sleeve Bearing system, this 1/5 HP motor operates at a fixed 825 RPM speed, ensuring consistent airflow across the condenser coils. It runs on 208-230V single-phase power at 0.95 Amps, making it a reliable direct replacement for failed OEM condenser motors in ICP, Heil, and Tempstar units. The thru-bolt mount configuration and Clockwise (CW) rotation provide a secure fit and correct blade pitch alignment during installation. Specifically built to handle high-ambient outdoor temperatures, this condenser fan motor replacement is essential for maintaining proper refrigerant head pressure and system longevity in demanding residential or light commercial environments.
Key Benefits for Technicians:- Precise OEM Fit: Direct replacement for 1175587, eliminating the need for mounting bracket modifications in the field.
- Efficient Performance: Low 0.95 Amp draw reduces energy consumption while maintaining the 1/5 HP torque required for heavy-duty fan blades.
- Quiet Operation: The sleeve bearing design offers superior vibration dampening compared to ball bearings, resulting in quieter condensing unit performance.
- Standardized Housing: The 48 Frame diameter ensures compatibility with standard wire guards and motor mounts.
What capacitor is required for the ICP 1175587?
This PSC motor typically requires a 5 MFD / 370V run capacitor; always verify the microfarad rating on the motor nameplate during installation to prevent overheating.
Can this motor be used in a CCW application?
No, this specific model is designed for CW rotation. Reversing rotation on a non-reversible PSC motor can lead to immediate winding failure or poor heat exchange.
Is the 1175587 suitable for multi-speed fans?
This is a dedicated 1-speed motor. If your logic board requires multi-tap speed control, ensure the system is configured for single-speed operation before wiring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
