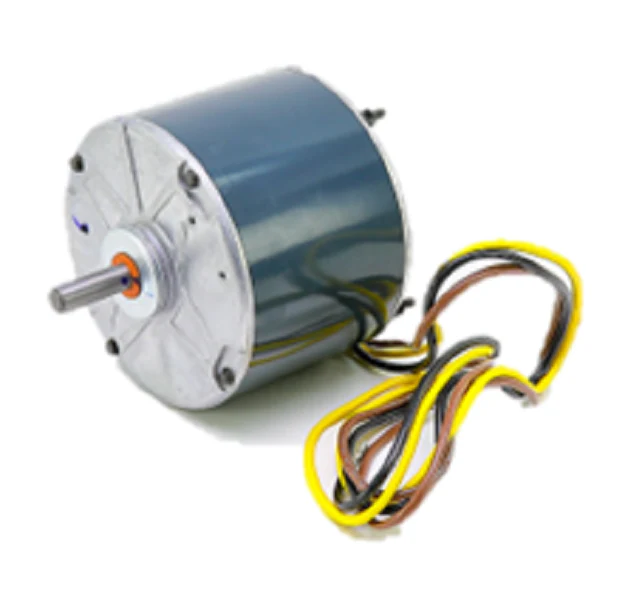

Heil Quaker ICP 1175586 Motor
The Heil Quaker ICP 1175586 is a professional-grade OEM replacement condenser fan motor designed for high-static pressure applications in residential and light commercial HVAC systems. Operating at 1/8 HP and 825 RPM, this single-phase 208-230V motor delivers the precise torque required to maintain optimal airflow across the outdoor coil, ensuring efficient heat rejection and lower head pressures. Engineered with a specialized 48-frame configuration and TEAO (Totally Enclosed Air Over) enclosure, it provides maximum protection against moisture and debris infiltration, extending the service life of the internal windings. This permanent split capacitor motor utilizes a standard 5 MFD / 370V capacitor (sold separately) to ensure reliable startup and low amperage draw. When diagnosing a failed outdoor fan, the 1175586 serves as a direct drop-in for numerous ICP, Heil, and Tempstar units, maintaining the original equipment’s performance curve and electrical integrity.
Key Technical Benefits- Direct OEM Fit: Eliminates the need for bracket modification or shaft cutting, reducing labor time during HVAC motor replacement.
- High-Efficiency Performance: The 825 RPM design minimizes harmonic noise and vibration while maximizing CFM output.
- Durable Construction: Features all-angle ball bearings to support multiple mounting orientations (shaft up or shaft down).
- Thermal Protection: Integrated automatic reset thermal overload protection prevents winding burnout during high-ambient operating conditions.
- Weatherproof Reliability: The sealed housing is specifically rated for vertical shaft applications in demanding condensing unit motor environments.
What is the correct capacitor rating for the 1175586 motor?
This motor requires a 5 MFD 370V run capacitor. Using an incorrectly sized capacitor can cause excessive heat buildup and lead to premature motor failure.
Can I use this motor to replace a 1075 RPM fan motor?
No, replacing a 1075 RPM motor with an 825 RPM motor will significantly reduce airflow, leading to high head pressure and potential compressor damage. Always match the RPM rating found on the existing data plate.
Is this a reversible rotation motor?
The ICP 1175586 is typically factory-set for a specific rotation (usually CCWLE), so verify the air direction and rotation against your specific unit’s requirements before final installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
