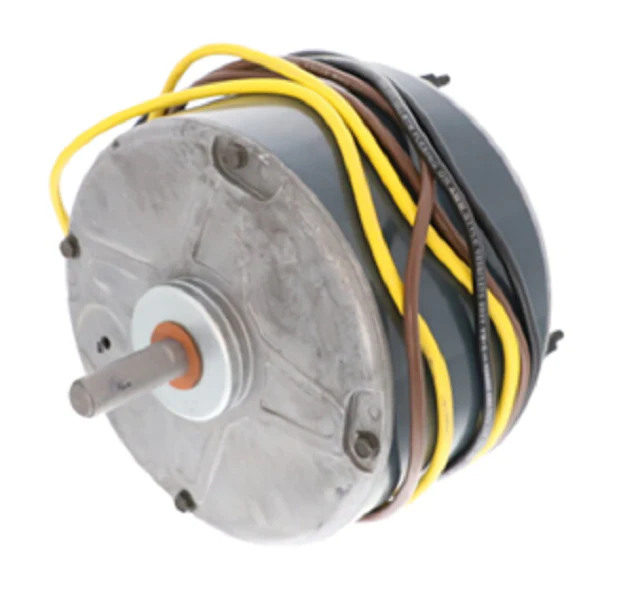

Heil Quaker ICP 1175585 Motor
Replace a failing condenser fan motor with the Heil Quaker ICP 1175585 Motor, a reliable OEM component designed for high-performance heat pump and central air conditioning applications. Operating at 208-230V, this 1/12 HP condenser fan motor provides a steady 1100 RPM to maintain optimal airflow across the condenser coils, preventing compressor overheating and system cycling. As a direct replacement for parts like HC31GE232A and 5KCP39BGS162S, it features a 48Y frame and a 5 5/8-inch diameter, ensuring a standard fit for many Heil, Tempstar, and Comfortmaker units. For technicians, this single-phase AC motor is built for durability with a sleeve bearing design and thermal protection to handle continuous air-over duty. When performing an HVAC motor replacement, always verify the rotation and capacitor requirements—typically a 5 MFD / 370V run capacitor—to ensure the condenser fan motor 1100 RPM performance meets factory specifications and restores total system efficiency.
Key Benefits
- Direct OEM Compatibility: Engineered specifically for ICP brands, including Heil and Tempstar, ensuring a drop-in HVAC part replacement without mounting modifications.
- Thermal Protection: Includes internal thermal sensing to prevent 230V fan motor failure during high-ambient summer operation.
- Optimized Airflow: The 1/12 HP rating is calibrated to draw the correct CFM, protecting the compressor from head pressure spikes.
- Standardized Frame: The 48-frame design with a 1/2-inch shaft diameter allows for easy integration with existing fan blades.
Common Questions
What are the signs that this motor needs to be replaced?
Technicians should look for a seized shaft, burnt windings (high resistance), or a motor that hums but fails to start even with a verified capacitor. If the compressor is tripping on high-pressure or thermal limits, the condenser fan motor is often the culprit.
Do I need to replace the capacitor at the same time?
Yes, it is standard industry practice to install a new run capacitor alongside a new Heil Quaker motor. An out-of-tolerance capacitor can cause the new motor to draw excessive amperage and fail prematurely.
What is the rotation of the 1175585 motor?
This motor is typically rated for CWLE (Clockwise Lead End) rotation. Always check the fan blade pitch to ensure the 1100 RPM motor pulls air through the coil correctly for your specific cabinet design.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
