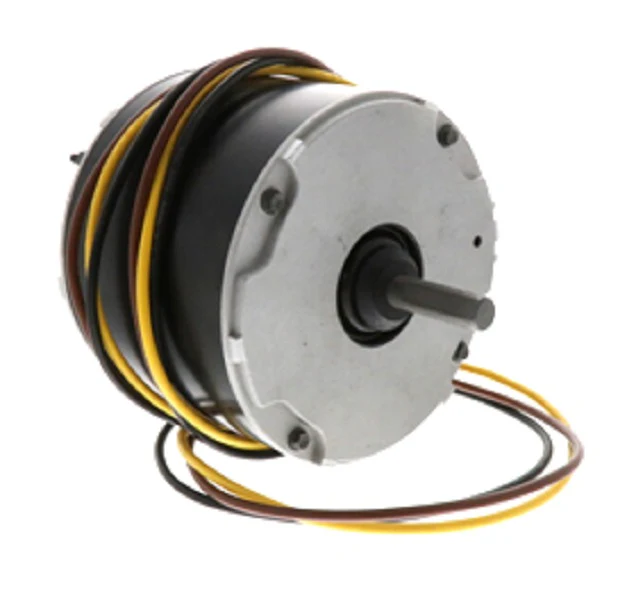

The Heil Quaker ICP 1175525 Motor is a heavy-duty, permanent split capacitor (PSC) motor engineered specifically for demanding condenser fan applications. Operating at 460Vac, this 1/4HP condenser fan motor delivers a consistent 1100 RPM, making it a critical component for maintaining head pressure and heat exchange efficiency in commercial HVACR systems. This motor is a direct OEM equivalent to the 5KCP39HGS239S and is built on the industry-standard 48 NEMA frame size. Its sleeve bearing design and CW rotation (clockwise) ensure quiet, reliable operation when mounted via the integrated thru-bolt configuration. As a single-speed, single-phase unit drawing only 0.8 amps, it provides a balance of low energy consumption and high torque, essential for overcoming the static pressure of large condenser coils. This part is widely compatible with units from International Comfort Products, including Heil, Quaker, Tempstar, and Arcoaire, providing a drop-in solution for field technicians requiring precise HVAC replacement parts.

Key Benefits

• Direct OEM Replacement: Seamlessly replaces part 1175525 and 5KCP39HGS239S, ensuring perfect physical and electrical alignment.
• Field-Proven Reliability: Features a high-grade sleeve bearing system designed for the vertical or horizontal orientations typical of outdoor condenser units.
• High-Voltage Spec: Specifically wound for 460V applications, providing the necessary torque for commercial-grade fan blades without overheating.
• Simplified Installation: Standard 8-32 thru-bolt mounting and verified CW rotation reduce troubleshooting time during emergency service calls.

Common Questions

• Is a new capacitor required for this motor? Yes, for optimal performance and to prevent premature winding failure, it is industry practice to install a new 5 MFD / 370V run capacitor with this motor.
• What frame size does this motor use? This unit utilizes a 48 frame (5.6-inch diameter), the standard for 1/4HP condenser fan applications, ensuring compatibility with most mounting brackets.
• Can this 460V motor be used on a 230V system? No, this motor is specifically wound for 460-volt operation; attempting to run it on lower voltage will result in insufficient torque and immediate electrical failure.

Notes

Item is Non Cancelable / Non Returnable

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
