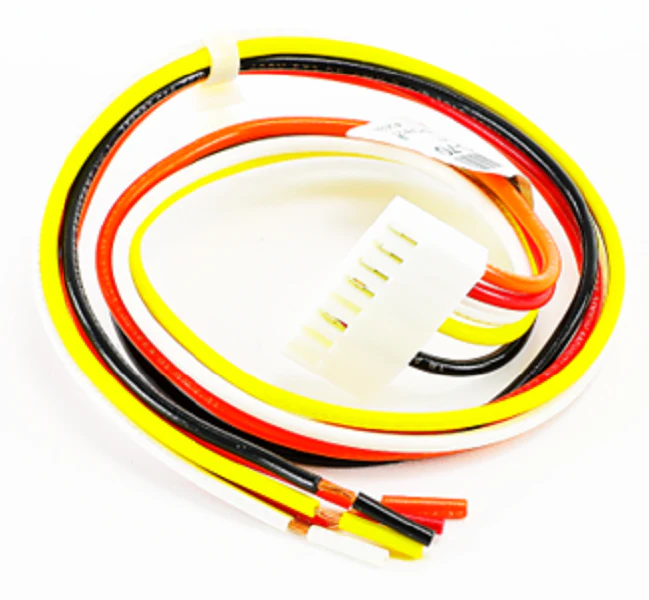

Heil Quaker ICP 1174744 Harness
The Heil Quaker ICP 1174744 Harness is a critical defrost board to thermostat connection designed for high-performance heat pump systems. Built to survive the harsh electrical environments of outdoor condenser units, this OEM replacement wiring harness facilitates seamless communication between the defrost control board and the indoor thermostat. In the field, technicians rely on this specific ICP HVAC wire assembly to resolve signal interruptions that often lead to erratic defrost cycles or complete system lockouts during winter operation. By ensuring the HK32EA001 defrost board receives accurate 24V calls from the stat, this harness maintains the integrity of the demand defrost logic, preventing excessive ice buildup on the outdoor coil. This lead-set is a direct-drop replacement for several Heil, Tempstar, and Comfortmaker models, including the H2H3, H4H3, and N2H3 series. Using a genuine heat pump defrost harness minimizes voltage drops and eliminates the risk of pin-tension failures common with generic alternatives.
Key Benefits:
- Precision Signal Transmission: Ensures the defrost board to stat harness delivers clean 24VAC signals to initiate and terminate defrost cycles accurately.
- OEM Compatibility: Specifically engineered for International Comfort Products (ICP) equipment, ensuring a perfect fit for multi-pin connectors on HK32EA001 control boards.
- Rugged Insulation: Constructed with high-grade materials to resist moisture ingress and thermal degradation within the outdoor unit casing.
- Contractor-Grade Reliability: Designed for an exact "plug-and-play" installation, reducing diagnostic time and preventing repeat service calls caused by brittle or corroded wiring.
Common Questions:
Will this harness fix a heat pump that is frozen solid?
If the defrost board is functional but the coil is still icing up, a faulty 1174744 harness may be preventing the "W" signal from reaching the indoor unit to engage auxiliary heat during defrost. Always verify 24V at the board terminals before condemning the harness.
Is this harness compatible with older ICP units?
The ICP 1174744 is designed for modern 13-16 SEER heat pump platforms. It is the primary defrost board to thermostat harness for H2H3, H4H3, and N2H series models. Check your specific wiring diagram to confirm pinouts.
How do I check if the harness needs replacement?
Look for signs of terminal corrosion or "green death" at the plug. If you have 24V leaving the thermostat but nothing at the defrost board Y or O pins, the harness is likely open.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $11.39
-65%$11.39
$3.99Heil Quaker ICP 1174744 Harness
