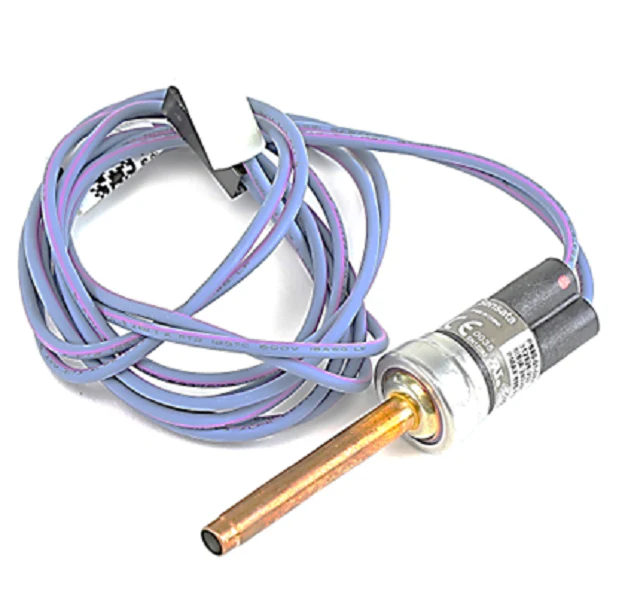

Heil Quaker ICP 1174695 Pressure Switch
The Heil Quaker ICP 1174695 Pressure Switch is an essential safety component designed for high-pressure monitoring in HVAC condensing units and heat pumps. This single-pole single-throw (SPST) switch functions as a high-limit cutoff, protecting the compressor and refrigeration circuit from damage caused by excessive head pressure. Rated for a 670-470# High Pressure Switch specification, it features a 670 PSI cutout and a 470 PSI reset point. Built for industrial-grade reliability, this OEM replacement pressure switch ensures precise communication with the control board to prevent catastrophic equipment failure during restricted airflow or overcharge conditions. This ICP furnace part is compatible with a wide range of Heil, Comfortmaker, and Tempstar equipment, providing a direct-fit solution for technicians performing refrigerant pressure safety repairs in the field.
Key Benefits for Technicians- Precise Pressure Calibration: Factory-set at 670 PSI trip and 470 PSI reset for accurate system protection.
- Heavy-Duty Construction: Built to withstand high-vibration environments typical of outdoor HVAC units.
- Universal ICP Compatibility: Direct replacement for multiple Heil Quaker and International Comfort Products models to streamline truck stock.
- Enhanced System Safety: Prevents compressor burnout by interrupting the 24V control circuit when limits are exceeded.
What causes a high pressure switch to trip in an ICP unit?
Trips are typically caused by restricted airflow over the condenser coils, a failing outdoor fan motor, or a refrigerant overcharge condition.
How do I test the 1174695 pressure switch for continuity?
Using a multimeter, check for continuity across the terminals under normal operating pressures; the switch should remain closed until the 670 PSI threshold is reached.
Is this switch a manual or automatic reset?
The ICP 1174695 is an automatic reset switch that will close the circuit once pressure drops back down to the 470 PSI reset point.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $40.16
-65%$40.16
$14.06Heil Quaker ICP 1174695 Pressure Switch
The Heil Quaker ICP 1174695 Pressure Switch is an essential safety component designed for high-pressure monitoring in HVAC condensing units and heat pumps. This single-pole single-throw (SPST) switch functions as a high-limit cutoff, protecting the compressor and refrigeration circuit from damage caused by excessive head pressure. Rated for a 670-470# High Pressure Switch specification, it features a 670 PSI cutout and a 470 PSI reset point. Built for industrial-grade reliability, this OEM replacement pressure switch ensures precise communication with the control board to prevent catastrophic equipment failure during restricted airflow or overcharge conditions. This ICP furnace part is compatible with a wide range of Heil, Comfortmaker, and Tempstar equipment, providing a direct-fit solution for technicians performing refrigerant pressure safety repairs in the field.
Key Benefits for Technicians- Precise Pressure Calibration: Factory-set at 670 PSI trip and 470 PSI reset for accurate system protection.
- Heavy-Duty Construction: Built to withstand high-vibration environments typical of outdoor HVAC units.
- Universal ICP Compatibility: Direct replacement for multiple Heil Quaker and International Comfort Products models to streamline truck stock.
- Enhanced System Safety: Prevents compressor burnout by interrupting the 24V control circuit when limits are exceeded.
What causes a high pressure switch to trip in an ICP unit?
Trips are typically caused by restricted airflow over the condenser coils, a failing outdoor fan motor, or a refrigerant overcharge condition.
How do I test the 1174695 pressure switch for continuity?
Using a multimeter, check for continuity across the terminals under normal operating pressures; the switch should remain closed until the 670 PSI threshold is reached.
Is this switch a manual or automatic reset?
The ICP 1174695 is an automatic reset switch that will close the circuit once pressure drops back down to the 470 PSI reset point.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
