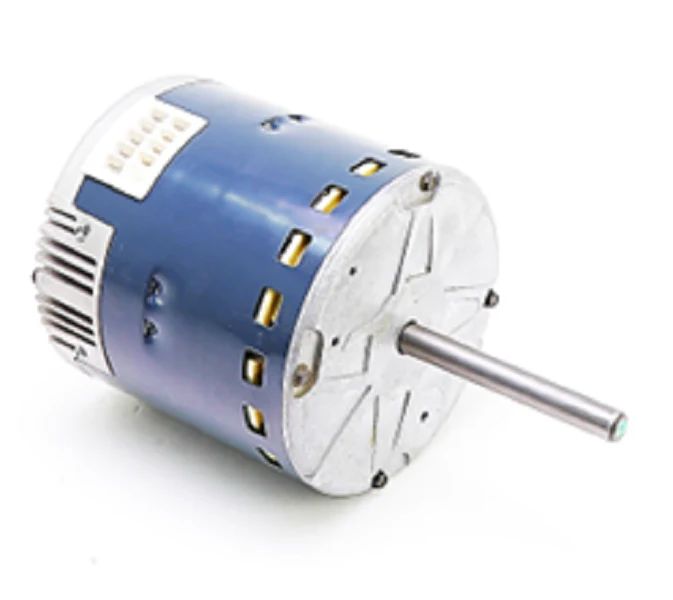

Heil Quaker ICP 1174278 Motor
The Heil Quaker ICP 1174278 Motor is a high-efficiency ECM blower motor designed for precise airflow control in specific ICP, Heil, and Tempstar residential air handlers and furnaces. Engineering specifications for this 1/2 HP variable speed motor include a 48 NEMA frame size, 208-230Vac single-phase operation, and a 4.1 Amp rating. This direct drive blower motor features a 1/2" x 4" shaft and CCW rotation, utilizing ball bearing construction for longevity in high-static applications. As a critical HVAC replacement part, this module-driven motor ensures optimal static pressure performance and energy efficiency compared to standard PSC alternatives. For technicians performing furnace motor replacement, verifying the programmed parameters and pin configuration is essential for seamless integration with the existing control board. This genuine OEM component maintains system integrity and performance standards required for variable-speed climate control systems.
Key Benefits
- Variable speed technology allows for precise CFM adjustments and enhanced dehumidification capabilities.
- Ball bearing design reduces internal friction and heat buildup during continuous duty cycles.
- NEMA 48 Frame compatibility ensures exact fitment within Heil Quaker blower assemblies.
- ECM efficiency significantly lowers amperage draw compared to traditional induction motors.
- Standardized 1/2 inch shaft diameter facilitates easy installation of the existing blower wheel.
Common Questions
Is this motor a direct drop-in for PSC motors?
No, the ICP 1174278 is an electronically commutated motor (ECM) and requires a specific control signal and wiring harness compatible with variable-speed boards.
Does this unit include the motor control module?
Yes, this is a complete variable speed blower motor assembly, though you must verify the existing harness pinout matches the factory technical specifications.
What causes failure in these variable speed motors?
Common failure points include moisture intrusion in the module or high static pressure caused by restrictive ductwork, which may lead to 4.1 Amp threshold overloads.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
