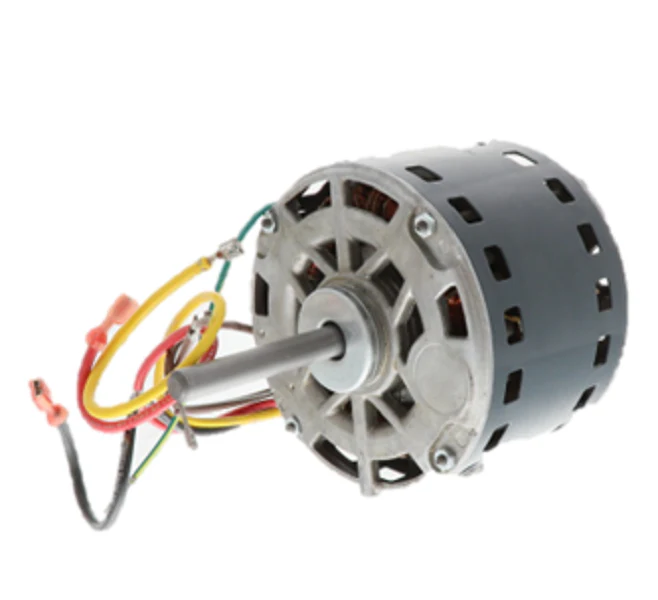

Heil Quaker ICP 1173840 Motor
The Heil Quaker ICP 1173840 Motor is a high-performance direct drive blower motor designed for reliable airflow in residential and light commercial HVAC systems. This 1/3 HP blower motor operates at 208-230V and is engineered with a 48 NEMA frame size, ensuring a precise fit in compatible air handlers and furnaces. As a PSC blower motor (Permanent Split Capacitor), it offers enhanced electrical efficiency and stable torque across its 2-speed range. Operating at a nominal 1060 RPM with a 2-amp draw, this motor utilizes sleeve bearings for quiet operation and a band mount configuration for straightforward installation. Technicians should note the clockwise (CW) rotation and the requirement for a 15/370 capacitor to ensure proper startup and run performance. This motor, also referenced as model KCP39HGAA63AS, is a critical component for restoring system volume and pressure in ICP, Heil, and Tempstar equipment.
Key Benefits
- Dual-Speed Versatility: The 2-speed motor design allows for optimized airflow control, improving seasonal efficiency and occupant comfort.
- Industrial Build Quality: Features a rugged 48 frame blower motor housing and sleeve bearings tuned for long-term service in quiet indoor environments.
- Broad ICP Compatibility: A direct drop-in for numerous Heil Quaker, Tempstar, and Comfortmaker units, reducing field modification time.
- Efficient PSC Design: The Permanent Split Capacitor technology ensures a lower amperage draw and cooler operating temperatures compared to older shaded-pole designs.
Common Questions
What is the correct rotation and mounting for the 1173840?
This unit is designed for CW (Clockwise) rotation and uses a band mount. Always verify the rotation from the lead end to ensure compatibility with your specific blower wheel configuration.
Does this motor require a specific capacitor?
Yes, for optimal performance and to prevent overheating, this 1/3 HP 1060 RPM motor typically requires a 15 MFD / 370 VAC capacitor. Using an incorrect rating can lead to premature winding failure.
Can this motor replace a 115V blower motor?
No, this is a 208-230Vac single phase motor. Attempting to install this on a 115V circuit will result in insufficient torque and potential motor damage. Always match the voltage specs on the nameplate.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
