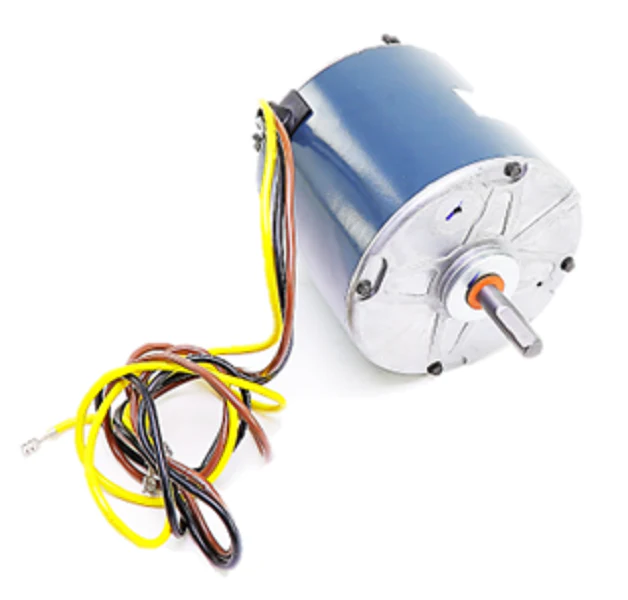

Heil Quaker ICP 1173781 Motor
The Heil Quaker ICP 1173781 Motor is a heavy-duty PSC condenser fan motor engineered for high-voltage commercial and industrial HVAC applications. Operating at 460Vac, this 1/4 HP motor is built on a 48 NEMA frame size, ensuring a precise fit for standard Heil, Quaker, and Comfortmaker outdoor units. With a rated speed of 825 RPM, it delivers high-torque airflow while maintaining low noise floor characteristics essential for residential-adjacent commercial sites. The motor features a CW rotation (Clockwise) and utilizes sleeve bearings for smooth operation in vertical shaft-up or shaft-down orientations. As a single-phase 460v motor drawing only 0.6 Amps, it provides an energy-efficient solution for emergency HVAC motor replacement. The 1173781 utilizes a thru-bolt mount configuration for secure installation in condenser fan motor maintenance, ensuring long-term structural integrity under high static pressure conditions.
Key Performance Benefits
- Precise Compatibility: Direct OEM replacement for Heil Quaker ICP 1173781 and 1173781 condenser motors.
- Efficient Power Draw: 0.6 Amps at 460V AC reduces load on electrical components and contactors.
- Durable Construction: Sleeve bearing design provides quiet operation and reliable heat dissipation in high-ambient environments.
- Standardized Mounting: 48 Frame with thru-bolt mounting simplifies installation for field technicians.
- Optimized Airflow: Single-speed 825 RPM output is calibrated for specific condenser coil heat transfer rates.
Common Technical Questions
What capacitor is required for the ICP 1173781?
As a Permanent Split Capacitor motor, this unit requires a specific MFD/Voltage rated capacitor (typically 5MFD/370V or 440V) to ensure proper starting torque and running efficiency.
Can this motor replace a ball bearing motor?
Yes, provided the NEMA 48 frame, 460V power supply, and CW rotation match the original equipment specifications.
Is this motor suitable for multi-speed applications?
No, this is a 1-speed condenser motor designed for constant-duty cycles in standard cooling or heat pump systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
