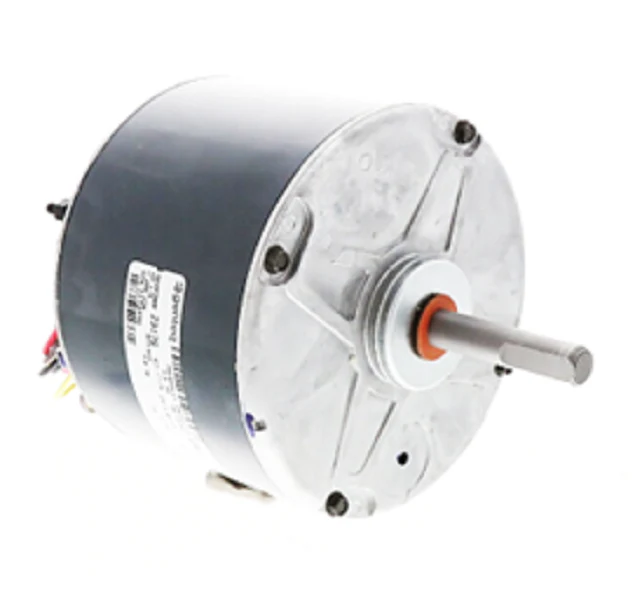

Heil Quaker ICP 1173775 Motor
The Heil Quaker ICP 1173775 Motor is a precision-engineered PSC condenser fan motor designed for high-static outdoor applications. Operating at 1/8 HP with a 208-230V single-phase input, this 825 RPM HVAC motor provides the low-speed torque necessary for efficient heat dissipation in 48-frame configurations. As a 0.7 Amp induction motor, it features a CW rotation (lead end) and utilizes a permanent split capacitor design to maintain high electrical efficiency during continuous duty cycles. The sleeve bearing system is optimized for quiet operation and long-term reliability in residential and light commercial condensing units. For field installation, the thru-bolt mount and NEMA 48 frame ensure a direct-fit replacement for variety of ICP, Heil, and Tempstar models, maintaining factory airflow specifications without requiring bracket modifications. Rely on this ICP 1173775 replacement to restore optimal head pressure and subcooling performance in demanding environments.
Technical Specifications & Key Benefits
- Direct OEM Fit: Ensures 48 NEMA frame compatibility for rapid field installation.
- Electrical Efficiency: 208-230Vac operation at a low 0.7 Amp draw reduces secondary component wear.
- Thermal Management: 825 RPM low-speed operation provides consistent cooling for condenser coils.
- Quiet Operation: Precision sleeve bearings minimize vibration and acoustic output.
- Reliable Starting: Permanent Split Capacitor (PSC) design ensures high starting torque and consistent run performance.
Common Industry Questions
Can I use a higher RPM motor to replace the 1173775?
Installing a motor with a higher RPM than the 825 RPM specification can lead to increased static pressure, higher noise levels, and potential compressor issues due to improper heat exchange rates.
What capacitor is required for this Heil Quaker motor?
While the 1173775 is a PSC condenser fan motor, you should always check the nameplate for the specific microfarad (MFD) rating, as using an incorrect capacitor can lead to winding failure or overheating.
Is this motor compatible with CCW applications?
Notice that this specific model is rated for CW rotation. Verify your fan blade pitch and the rotation of the existing condenser motor before completing the installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
