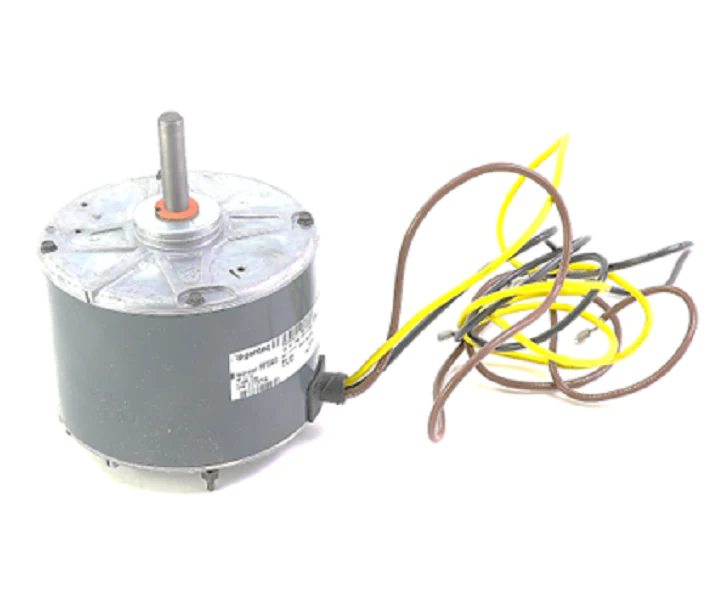

Heil Quaker ICP 1173716 Motor
The Heil Quaker ICP 1173716 Motor is an OEM replacement condenser fan motor engineered for specific HVAC applications requiring a 1/12 HP output. Operating at 208-230Vac on a single phase, this Permanent Split Capacitor motor runs at a steady 800 RPM. Built with a 48 NEMA frame size and utilizing a sleeve bearing design, it is optimized for vertical or horizontal mounting via a thru-bolt configuration. This single-speed unit draws 0.5 Amps, ensuring efficient heat dissipation from the outdoor coil. The CW (clockwise) rotation and TEAO (Totally Enclosed Air Over) characteristics make it a reliable choice for maintaining proper head pressure in residential condensing units. For contractors, the ICP 1173716 ensures exact physical dimensions for a drop-in fit, reducing field labor time and eliminating the need for mounting bracket modifications often required with universal aftermarket motors.
Key Benefits
- Direct OEM Fit: Eliminates the need for universal mounting adapters, saving time on the job site.
- Optimized RPM: The 800 RPM rating provides the correct static pressure and airflow for specific Heil and Quaker condenser coils.
- Low Amp Draw: At 0.5 Amps, this 1/12 HP motor maintains high efficiency while reducing energy consumption.
- Sleeve Bearing Design: Whisper-quiet operation suitable for residential neighborhoods.
- Rugged 48 Frame: Standardized NEMA sizing for consistent shell diameter and bolt patterns.
Common Questions
Does this motor require a new run capacitor?
Yes, when replacing any PSC condenser motor, it is best practice to install a new capacitor to match the microfarad rating specified on the 1173716 nameplate to ensure optimal torque and motor life.
Will this motor work for CCW applications?
This motor is factory-set for CW rotation. Verify the rotation of the existing fan blade before installation, as reversing a condenser fan motor not designed for it can lead to overheating.
Is this a direct replacement for 1173716?
Yes, this is the exact Heil Quaker ICP replacement motor, ensuring that the shaft diameter, length, and electrical specifications match the original equipment manufacturer's requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
