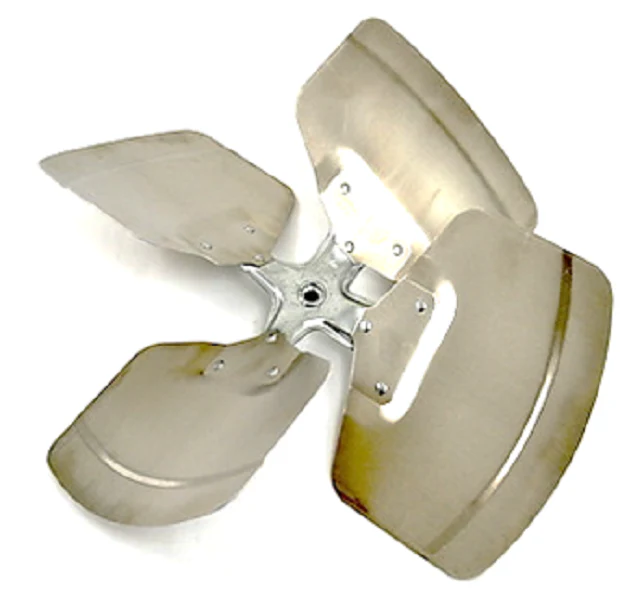

Heil Quaker ICP 1173707 Fan Blade
The Heil Quaker ICP 1173707 Fan Blade is a critical OEM replacement component engineered for high-performance condensing units. Designed specifically for HVACR applications, this 20-inch 4-blade assembly features a 34-degree pitch to optimize airflow and ensure efficient heat exchange in residential and light commercial systems. This specified pitch allows the unit to maintain a constant static pressure, preventing motor strain while delivering up to 2,600 CFM under standard load conditions. With a 1/2 inch bore located on the intake side and a clockwise (CW) rotation, this blade is a direct fit for numerous International Comfort Products (ICP) brands, including Heil, Tempstar, Comfortmaker, and Arcoaire. Constructed for durability and precision balance, the 1173707 helps mitigate vibration-induced noise and extends the service life of the condenser fan motor. Verify the rotation and hub orientation before installation to ensure the set screw secures firmly to the motor shaft flat.
Technical Specifications & Key Benefits:- OEM Compatibility: Exact replacement for ICP 1173707, ensuring drop-in fitment for Heil and Tempstar heat pumps.
- High-Efficiency Airflow: The 34? blade pitch is calibrated for maximum heat dissipation across the condenser coil.
- Standard Bore Size: Features a universal 1/2" bore with a single set screw for secure mounting on standard motor shafts.
- Optimized Performance: 4-blade configuration designed to operate at speeds up to 1,750 RPM without structural deformation.
- System Longevity: Precision-balanced blades reduce radial load on fan motor bearings, preventing premature failure.
How do I verify the rotation of the 1173707 fan blade?
This blade is Clockwise (CW) rotation when viewing the discharge side. Always cross-reference the rotation of your existing motor to avoid reverse-flow overheating issues.
Can this blade be used in heat pump applications?
Yes, it is commonly utilized in ICP heat pump units and air conditioners where a 20" diameter and specific CFM delivery are required for efficient refrigerant cooling.
Is the hub on the intake or discharge side?
The hub is located on the intake side. Technicians should ensure the 1/2" bore matches the shaft diameter and that the set screw is torqued to manufacturer specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
