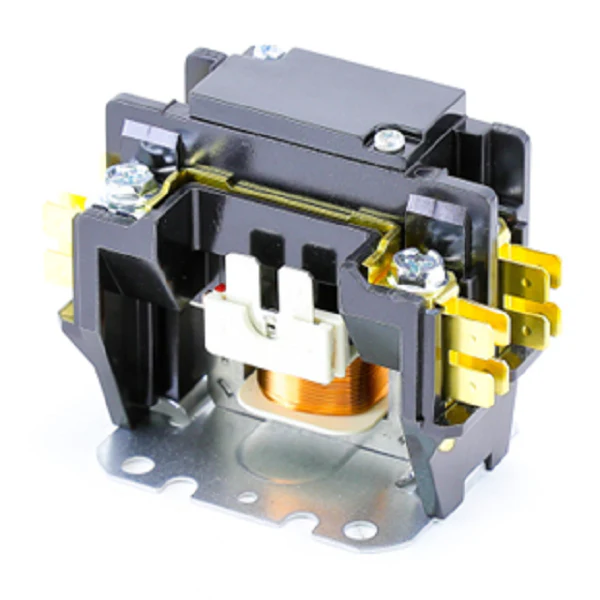

Heil Quaker ICP 1173690 Contactor
When you're out in the field and a compressor isn't pulling in, or the outdoor fan is non-responsive, the Heil Quaker ICP 1173690 Contactor is the exact OEM drop-in for Heil, Tempstar, and Comfortmaker residential systems. This 1P 24V 40A contactor is engineered for high-cycle reliability in aggressive HVACR environments. Featuring a 24VAC control coil and a 40 amp contact rating, this component manages single-phase inductive loads with a built-in internal shunt. The shunt design provides a continuous path for one side of the power line, effectively doubling as a terminal block while reducing physical footprint in the service panel. Whether you are performing an AC contactor replacement or troubleshooting a faulty 24V single pole contactor, this genuine ICP 1173690 ensures terminal alignment matches factory wiring, preventing the "universal part" headaches often found with cheap knock-offs. It is compatible with 1.5 to 5-ton condensers and heat pumps across the ICP family. Keep this HVAC definite purpose contactor in your van to avoid callbacks and maintain factory performance standards on every service call.
Key Benefits for Technicians:
- High Amperage Rating: Rated at 40 FLA (Full Load Amps), providing overhead for high-tonnage residential condensers.
- Integrated Shunt: Consolidates wiring and simplifies the circuit by providing a constant neutral/hot bridge on the non-switching side.
- Dust-Shielded Contacts: Enclosed contact points reduce debris accumulation, preventing premature pitting or welding.
- Direct OEM Fit: Eliminates drilling or bracket modification, ensuring quick installation in PAD4, PAR5, and PAJ4 series units.
Common Questions & Technical Support:
Can I use a 2-pole contactor to replace this single-pole unit?
While a 2-pole contactor will physically fit, this single-pole model with a shunt is designed to keep one leg of the power hot to the crankcase heater. Swapping it for a standard double pole without rewiring could disable that heater, leading to liquid slugging at the compressor on startup.
Are the terminals compatible with standard quick-connects?
Yes, this unit features standard 1/4-inch male spade terminals for the coil and load, along with heavy-duty box lugs for the primary line and load wires, ensuring secure, high-current connections.
Why is the shunt important for these specific ICP models?
The shunt provides a permanent electrical path that is essential for powering auxiliary components like crankcase heaters or start capacitors that require a constant connection even when the contactor is open.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $49.44
-65%$49.44
$17.30Heil Quaker ICP 1173690 Contactor
When you're out in the field and a compressor isn't pulling in, or the outdoor fan is non-responsive, the Heil Quaker ICP 1173690 Contactor is the exact OEM drop-in for Heil, Tempstar, and Comfortmaker residential systems. This 1P 24V 40A contactor is engineered for high-cycle reliability in aggressive HVACR environments. Featuring a 24VAC control coil and a 40 amp contact rating, this component manages single-phase inductive loads with a built-in internal shunt. The shunt design provides a continuous path for one side of the power line, effectively doubling as a terminal block while reducing physical footprint in the service panel. Whether you are performing an AC contactor replacement or troubleshooting a faulty 24V single pole contactor, this genuine ICP 1173690 ensures terminal alignment matches factory wiring, preventing the "universal part" headaches often found with cheap knock-offs. It is compatible with 1.5 to 5-ton condensers and heat pumps across the ICP family. Keep this HVAC definite purpose contactor in your van to avoid callbacks and maintain factory performance standards on every service call.
Key Benefits for Technicians:
- High Amperage Rating: Rated at 40 FLA (Full Load Amps), providing overhead for high-tonnage residential condensers.
- Integrated Shunt: Consolidates wiring and simplifies the circuit by providing a constant neutral/hot bridge on the non-switching side.
- Dust-Shielded Contacts: Enclosed contact points reduce debris accumulation, preventing premature pitting or welding.
- Direct OEM Fit: Eliminates drilling or bracket modification, ensuring quick installation in PAD4, PAR5, and PAJ4 series units.
Common Questions & Technical Support:
Can I use a 2-pole contactor to replace this single-pole unit?
While a 2-pole contactor will physically fit, this single-pole model with a shunt is designed to keep one leg of the power hot to the crankcase heater. Swapping it for a standard double pole without rewiring could disable that heater, leading to liquid slugging at the compressor on startup.
Are the terminals compatible with standard quick-connects?
Yes, this unit features standard 1/4-inch male spade terminals for the coil and load, along with heavy-duty box lugs for the primary line and load wires, ensuring secure, high-current connections.
Why is the shunt important for these specific ICP models?
The shunt provides a permanent electrical path that is essential for powering auxiliary components like crankcase heaters or start capacitors that require a constant connection even when the contactor is open.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
