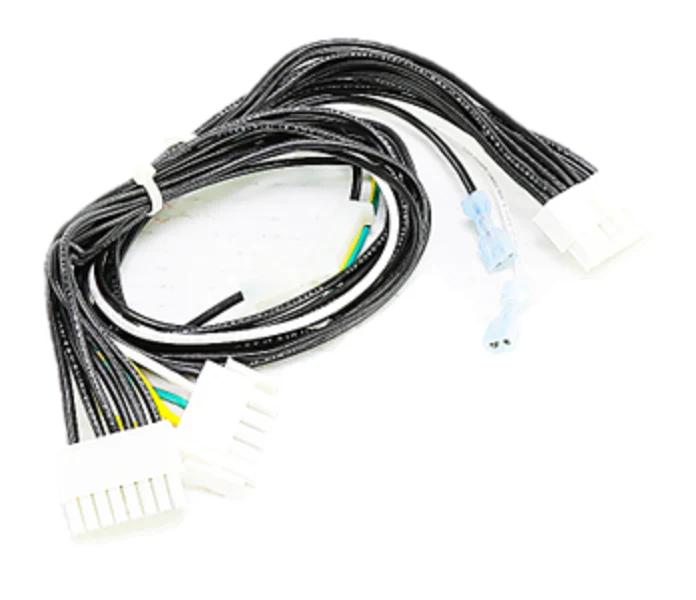

Heil Quaker ICP 1173064 Wire Harness
As an HVAC professional, you know that a failed Heil Quaker ICP 1173064 Wire Harness is often the root cause of intermittent blower failure or communication errors in variable speed fan motors. This genuine OEM ICP HVAC replacement part is specifically engineered for high-efficiency furnaces and air handlers, featuring a 12-inch lead with 18 AWG wiring and polarized connectors (Molex Mini-Fit Jr.) to ensure a secure, error-proof fit during installation. Designed to withstand the high-temperature environment of the blower compartment, this furnace blower motor wiring assembly facilitates precise low-voltage signals between the integrated furnace control (IFC) and the motor's internal inverter. Replacing a brittle or corroded 1173064 wire harness is a standard preventative measure when upgrading a variable speed blower motor to prevent voltage drops or signal interference that can lead to premature motor failure or "no-heat" service calls. Trust this OEM-spec component for seamless Heil furnace parts compatibility and long-term system reliability.
Key Benefits:- OEM Compatibility: Precision-fit for Heil, Quaker, and International Comfort Products (ICP) residential HVAC systems requiring the 1173064 specification.
- Polarized Connectors: Features keyed terminals to prevent mis-wiring and ensure correct phasing between the control board and the motor.
- Durable Insulation: High-grade thermal-resistant coating protects the 18 AWG conductors from the vibration and heat typical of blower housing environments.
- Signal Integrity: Optimized for low-voltage communication, ensuring the variable speed motor receives clean data for efficient CFM modulation.
Is the ICP 1173064 compatible with all variable speed motors?
This harness is specifically designed for units utilizing the ICP 1173064 part number. Always verify the connector pinout and motor frame size (ECM 2.3, 3.0, etc.) against the manufacturer's technical support manual before installation.
How do I troubleshoot a faulty blower motor wire harness?
Inspect the Molex connectors for signs of pitting, melting, or corrosion. Use a multimeter to check for continuity across each lead; high resistance or an open circuit indicates the harness must be replaced to restore proper blower function.
Can I use an aftermarket wire harness instead of the 1173064?
While universal kits exist, using the genuine OEM 1173064 harness ensures the wire gauge and connector locking mechanisms meet the specific amperage and environmental demands of the original equipment design.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
