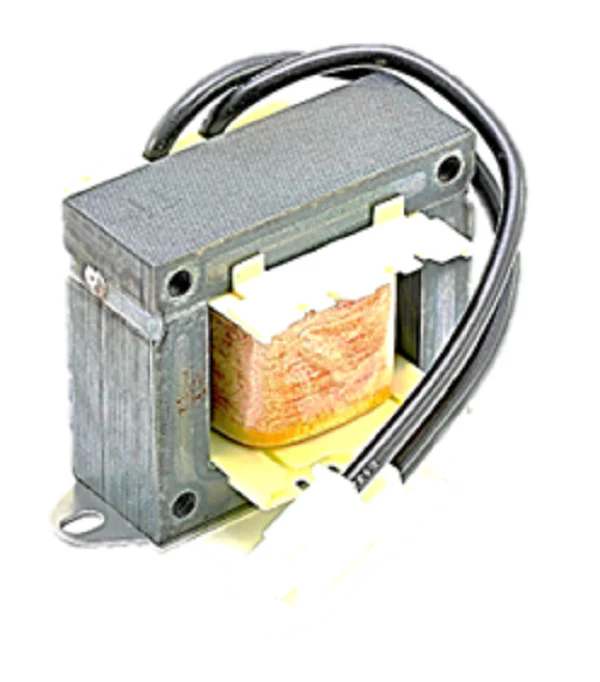

Heil Quaker ICP 1172838 Choke Power
The Heil Quaker ICP 1172838 Choke Power is a specific inductive component engineered for high-efficiency furnace variable speed blower motor applications. Rated at 2 mH and 12 ADC, this power choke serves a critical role in the electrical circuit by filtering high-frequency noise and limiting peak current. For technicians troubleshooting airflow fluctuations or motor "hunting" in ICP brands like Tempstar, Comfortmaker, or Arcoaire, this inductor provides the necessary impedance to stabilize the power signal delivered to the ECM. By managing back EMF and smoothing out current ripples, the 1172838 ensures that variable speed furnace components operate within their intended thermal and electrical parameters. This genuine OEM replacement part is built for domestic distribution and direct compatibility with Heil Quaker furnace parts. Proper installation is vital to prevent inductor saturation, which can lead to premature motor failure or control board damage in high-static residential systems.
Key Benefits- Current Regulation: Effectively limits peak current to protect sensitive variable speed blower motors from electrical surges.
- OEM Compatibility: Precision-engineered for ICP furnace models, including high-efficiency F96, F97, and G97 series.
- Noise Suppression: Reduces electromagnetic interference (EMI) within the furnace control cabinet for cleaner signal processing.
- Stable Inductance: Consistent 2 mH performance ensures the system maintains precise airflow control in multi-stage heating cycles.
What are the signs of a failing power choke?
A failing choke often presents as erratic blower motor speeds, humming noises from the motor, or "open circuit" readings when testing for continuity with a multimeter.
How do I verify if the 1172838 is the correct part for my unit?
Reference the induction rating on your existing component. This part is rated for 12 ADC and is the standard choke power supply for most ICP variable speed residential gas furnaces.
Can I bypass the choke for temporary heating?
Bypassing the choke is not recommended as it leaves the blower motor vulnerable to peak current damage and can interfere with the furnace control board's logic.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
