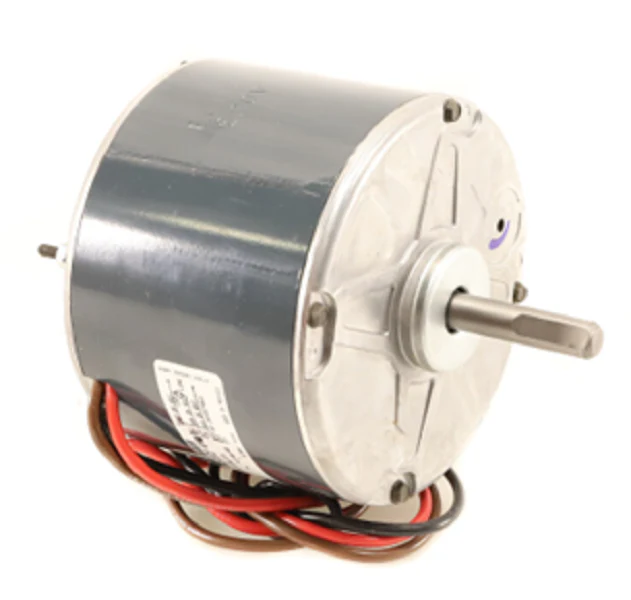

Heil Quaker ICP 1172443 Motor
The Heil Quaker ICP 1172443 Motor is a high-performance 1/3 HP condenser fan motor engineered for commercial and residential HVAC replacement parts applications. Operating at a voltage range of 380-460VAC, this single-phase unit is designed for durability in demanding environments. It features a NEMA 48 frame and utilizes a permanent split capacitor (PSC) design to maintain high electrical efficiency and consistent torque. With a rated speed of 1100 RPM and a low current draw of 0.9 Amps, it provides reliable heat rejection for condenser units. This OEM replacement motor is built with a standard sleeve bearing system and a thru-bolt mount for secure installation. The CW rotation (clockwise) is fixed, making it a direct-drop-in for specific International Comfort Products (ICP) and Heil Quaker equipment. Professionals choosing the ICP 1172443 can rely on its robust thermal protection and standard frame dimensions for efficient field service.
Key Benefits- High-Efficiency PSC Design: Reduces power consumption while providing steady 1100 RPM performance.
- Wide Voltage Tolerance: Compatible with 380V to 460V power supplies typically found in industrial and commercial HVAC systems.
- Standardized Mounting: The 48-frame NEMA size and thru-bolt pattern ensure compatibility with existing brackets.
- Quiet Operation: Precision-engineered sleeve bearings minimize vibration and mechanical noise during long run cycles.
Is this motor reversible?
No, this unit is built with a fixed CW rotation (clockwise). Always verify the rotation requirements of your fan blade before installation to ensure proper airflow.
What capacitor is required for this PSC motor?
This motor requires a specific run capacitor to operate correctly. Check the motor nameplate for the required MFD and voltage rating, as using an incorrect capacitor can lead to overheating or failure.
Can this replace a ball bearing motor?
Yes, provided the electrical specs and physical dimensions match. Sleeve bearings are ideal for standard condenser fan applications where quiet operation is prioritized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
