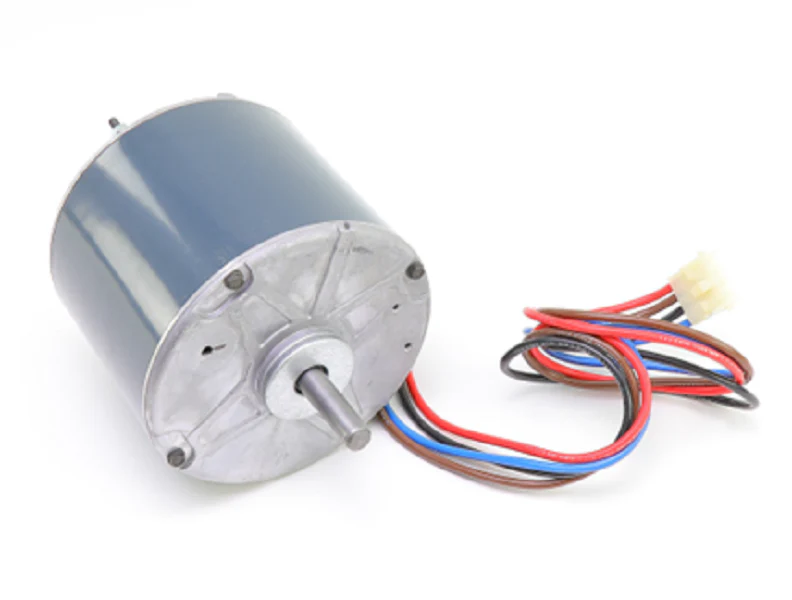

Heil Quaker ICP 1172252 Motor
The Heil Quaker ICP 1172252 Motor is a high-performance, original equipment manufacturer (OEM) replacement designed for demanding condensing unit applications. This 1/4 HP condenser fan motor operates at 208-230Vac and is engineered for precise thermal management. With a 2-speed configuration and a rated speed of 840 RPM, this motor provides the nuanced airflow control required for multi-stage cooling systems. Its NEMA 48 frame size and 5 5/8-inch diameter ensure a standard fit for a wide range of International Comfort Products (ICP) units, including models from Tempstar, Comfortmaker, and Arcoaire. Utilizing a Permanent Split Capacitor (PSC) design and a 1.2 Amp draw, this motor maintains high electrical efficiency. The clockwise (CW) rotation and sleeve bearing construction are optimized for vertical shaft-up or shaft-down condenser fan orientations, while the thru-bolt mounting system provides a secure, vibration-resistant installation in the field.
Key Benefits for Technicians- OEM Compatibility: Exact drop-in replacement for part numbers 1172252, HC39GZ003A, and 5KCP39KFZ224S, eliminating the need for mounting modifications.
- Optimized Performance: The 840 RPM low-speed operation reduces acoustic signature while maintaining necessary head pressure in residential and light commercial condensers.
- Durable Construction: Built with a NEMA 48 frame and sleeve bearings designed for continuous air-over (CAO) duty cycles in outdoor environments.
- Simple Integration: Features a standard 4-wire configuration with a plastic plug that can be utilized or removed for direct-wire furnace or condenser control boards.
What capacitor is required for the ICP 1172252?
This motor typically requires a 7.5 MFD @ 370 VAC run capacitor for proper torque and current draw. Always verify the rating on the existing motor nameplate before installation.
Can this motor replace a single-speed 1/4 HP motor?
Yes, if the physical specifications (840 RPM, 48 frame, CW rotation) match, the 2-speed functionality can be utilized or wired for single-speed operation by selecting the appropriate lead.
Is the rotation direction reversible?
No, the ICP 1172252 is a dedicated Clockwise (CW) rotation motor. Verify your fan blade pitch and rotation requirements to ensure proper airflow direction across the coils.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $304.23
-65%$304.23
$106.48Heil Quaker ICP 1172252 Motor
The Heil Quaker ICP 1172252 Motor is a high-performance, original equipment manufacturer (OEM) replacement designed for demanding condensing unit applications. This 1/4 HP condenser fan motor operates at 208-230Vac and is engineered for precise thermal management. With a 2-speed configuration and a rated speed of 840 RPM, this motor provides the nuanced airflow control required for multi-stage cooling systems. Its NEMA 48 frame size and 5 5/8-inch diameter ensure a standard fit for a wide range of International Comfort Products (ICP) units, including models from Tempstar, Comfortmaker, and Arcoaire. Utilizing a Permanent Split Capacitor (PSC) design and a 1.2 Amp draw, this motor maintains high electrical efficiency. The clockwise (CW) rotation and sleeve bearing construction are optimized for vertical shaft-up or shaft-down condenser fan orientations, while the thru-bolt mounting system provides a secure, vibration-resistant installation in the field.
Key Benefits for Technicians- OEM Compatibility: Exact drop-in replacement for part numbers 1172252, HC39GZ003A, and 5KCP39KFZ224S, eliminating the need for mounting modifications.
- Optimized Performance: The 840 RPM low-speed operation reduces acoustic signature while maintaining necessary head pressure in residential and light commercial condensers.
- Durable Construction: Built with a NEMA 48 frame and sleeve bearings designed for continuous air-over (CAO) duty cycles in outdoor environments.
- Simple Integration: Features a standard 4-wire configuration with a plastic plug that can be utilized or removed for direct-wire furnace or condenser control boards.
What capacitor is required for the ICP 1172252?
This motor typically requires a 7.5 MFD @ 370 VAC run capacitor for proper torque and current draw. Always verify the rating on the existing motor nameplate before installation.
Can this motor replace a single-speed 1/4 HP motor?
Yes, if the physical specifications (840 RPM, 48 frame, CW rotation) match, the 2-speed functionality can be utilized or wired for single-speed operation by selecting the appropriate lead.
Is the rotation direction reversible?
No, the ICP 1172252 is a dedicated Clockwise (CW) rotation motor. Verify your fan blade pitch and rotation requirements to ensure proper airflow direction across the coils.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
