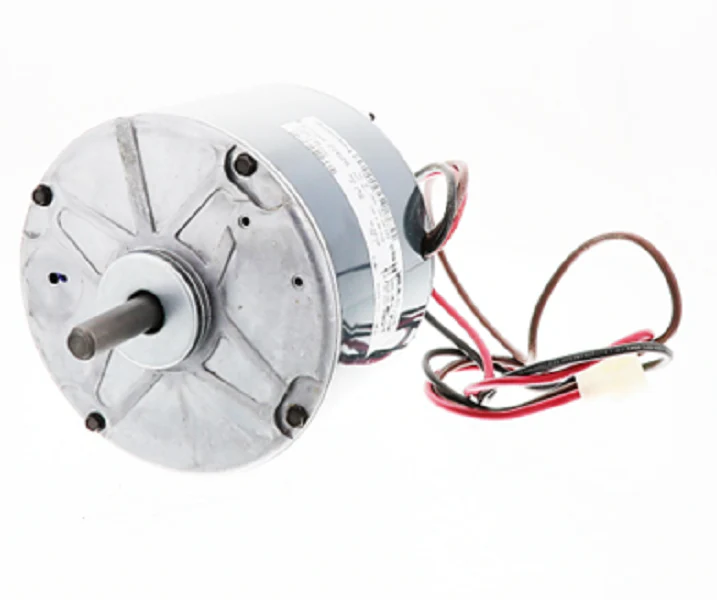

Heil Quaker ICP 1172225 Motor
The Heil Quaker ICP 1172225 Motor is a high-performance 1/3 HP condenser fan motor engineered specifically for residential and light commercial outdoor units. Operating at a standard 1075 RPM on a 208-230V single-phase power supply, this 1-speed motor ensures optimal airflow for heat dissipation. As a Permanent Split Capacitor (PSC) motor, it requires a 5 MFD / 370V run capacitor for proper torque and thermal management. The 48 NEMA frame design features a thru-bolt mount and high-quality sleeve bearings for quiet, vertical-shaft operation.
For field installations, this ICP 1172225 replacement motor utilizes a 1.9 Amp draw and operates with a CW rotation (lead end). Designed to withstand high ambient temperatures typical of condensing sections, this OEM-spec component maintains consistent head pressure and system efficiency. It is compatible with a wide range of Heil, Tempstar, and Comfortmaker equipment, including popular 3-ton to 5-ton AC and heat pump split systems. Verify the 1/2-inch shaft diameter and 1.5-inch shaft length before mounting to ensure exact fan blade alignment.
Key Benefits
- Genuine OEM quality ensures precise electrical compatibility and easier mounting than universal alternatives.
- Optimized 1075 RPM speed provides the exact static pressure required for factory-rated SEER performance.
- Durable sleeve bearing construction reduces vibration and mechanical noise within the outdoor cabinet.
- Thermally protected windings help prevent burnout during peak summer load conditions.
- Standard 48 frame size with thru-bolt pattern simplifies swaps in tight condenser housings.
Common Questions
What capacitor does the 1172225 motor use?
This motor requires a 5 MFD / 370V run capacitor. It is standard practice for technicians to replace the capacitor during any motor swap to prevent premature winding failure.
Is this a reversible motor?
This specific model is a CW rotation (Clockwise) unit. Always confirm the rotation of the existing fan blade from the lead end of the motor before installation.
Can I use this for a furnace blower?
No, this is a condenser fan motor designed for "Air Over" (OAO) applications in outdoor units; it is not intended for indoor blower or furnace applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
