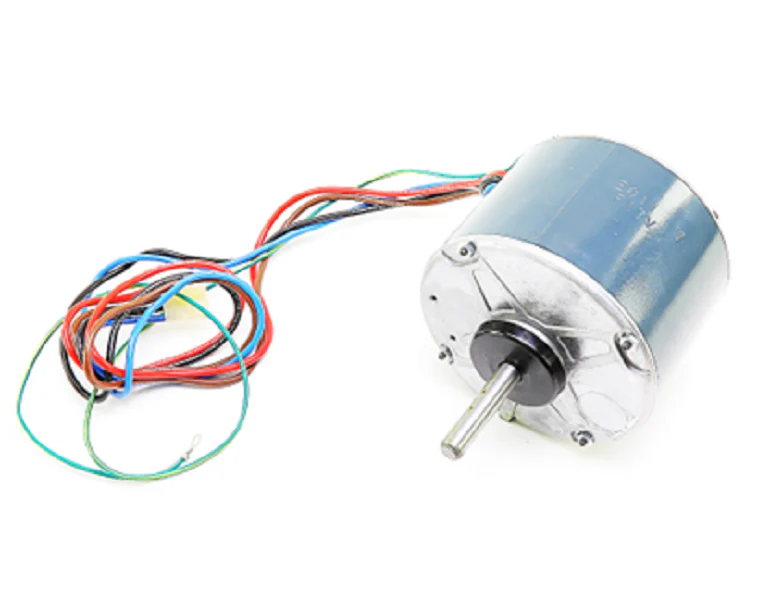

Heil Quaker ICP 1172201 Motor
The Heil Quaker ICP 1172201 Motor is a direct-drive condenser fan motor engineered for consistent performance in residential and light commercial HVAC systems. This Permanent Split Capacitor (PSC) motor operates at 1/3 HP and is optimized for 208-230Vac single-phase applications. Built around a 48 NEMA frame size, this unit offers a dual-speed configuration running at 1075 RPM. The 1.4 Amp draw and sleeve bearing design ensure quiet operation and efficient heat dissipation during long duty cycles. Designed with a band mount and Clockwise (CW) rotation, this ICP 1172201 replacement motor serves as a drop-in solution for specific Heil, Quaker, and Inter City Products (ICP) condensing units. For field installation, ensure your capacitor matches the microfarad rating specified on the nameplate to maintain the torque requirements and thermal protection standards necessary for this HVAC blower motor.
Key Benefits
- Optimized Efficiency: 1/3 HP PSC design minimizes energy consumption while maintaining high static pressure.
- Multi-Speed Versatility: The 1075 RPM 2-speed capability allows for precise airflow tuning based on system demand.
- Durable Construction: The 48-frame sleeve bearing assembly is built to withstand high ambient temperatures in condenser environments.
- Standardized Fit: Band mount configuration simplifies mounting across various Heil and ICP equipment chassis.
Common Questions
What is the shaft rotation for the 1172201 motor?
This motor is fixed for CW (Clockwise) rotation; technicians should verify the directional requirement of the fan blade before installation.
Can I use this as a universal replacement for any 1/3 HP motor?
While the 1/3 HP and 208-230V specs are common, the 1172201 sleeve bearing motor requires a matching 48 frame band mount and specific RPM to ensure the fan curve remains within OEM parameters.
Does this motor require a new run capacitor?
It is standard trade practice to replace the capacitor when installing a new condenser motor to prevent premature winding failure and ensure proper start torque.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
