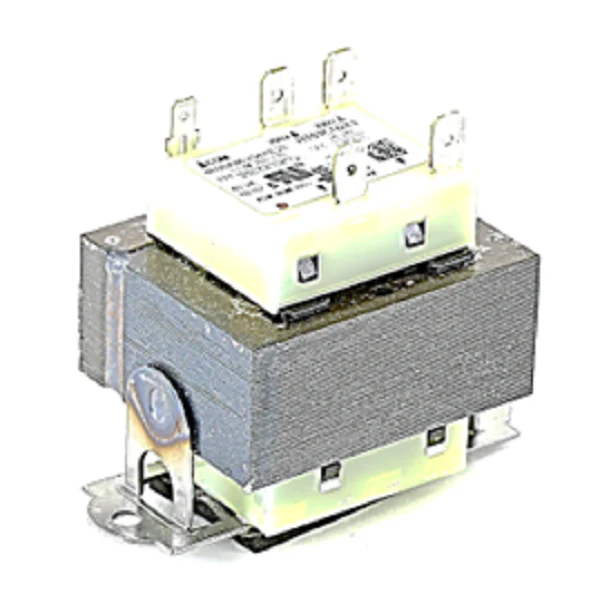

Heil Quaker ICP 1172028 Transformer
The Heil Quaker ICP 1172028 Transformer is a critical power conversion component designed for high-performance residential and light commercial HVAC systems. This 208V to 24V step-down transformer provides a steady 24VAC output from a 208V primary input, ensuring consistent operation for control boards, igniters, and thermostats. Rated at 40VA, it effectively manages the electrical load of modern furnaces, air handlers, and heat pumps from brands like Heil, International Comfort Products (ICP), Tempstar, and Comfortmaker. Replacing an aging or surging 40VA HVAC control transformer with this genuine OEM-equivalent part helps prevent system-wide shutdowns, erratic fan behavior, and unresponsive thermostat signals.
Engineered for durability, the ICP 1172028 features a robust core construction designed to minimize humming and vibration during high-demand cycles. It serves as a direct replacement for parts BE28316007 and HT01CN241, offering a reliable solution for technicians troubleshooting high-voltage primary supply issues. For professional installers, this 24V secondary transformer ensures a stable voltage drop-down for critical relay operations and safety circuits, maintaining system integrity under various thermal conditions.
Key Benefits- Precise Voltage Conversion: Efficiently steps down 208V primary power to a stable 24V secondary output for sensitive low-voltage controls.
- Broad ICP Compatibility: Designed for seamless integration with Heil, Tempstar, Arcoaire, and Comfortmaker furnaces and air handlers.
- 40VA Power Rating: Provides sufficient amperage for modern 24VAC control circuits, reducing the risk of overloading.
- OEM-Grade Reliability: Built to meet rigorous industrial specifications for long-term performance in demanding HVAC environments.
- Direct Cross-Reference: Replaces common part numbers including 1172028, BE28316007, and HT01CN241 for fast field swaps.
How do I confirm if my 208V to 24V transformer has failed?
Testing involves using a multimeter to check for 208V at the primary leads. If primary power is present but there is no 24V output on the secondary side, the internal windings have likely failed and the unit requires replacement.
Can I use a 40VA transformer if my original was rated for 30VA?
Yes, you can upgrade to a higher VA rating (such as 40VA) as long as the primary and secondary voltages match. A higher VA rating allows the transformer to handle more load without overheating, offering additional headroom for the system.
What causes a transformer like the Heil Quaker 1172028 to burn out?
The most common causes are low-voltage shorts in the contactor coil or thermostat wiring, or a power surge on the primary 208V line. Always clear any shorts in the 24V circuit before installing a new transformer.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $64.68
-65%$64.68
$22.64Heil Quaker ICP 1172028 Transformer
