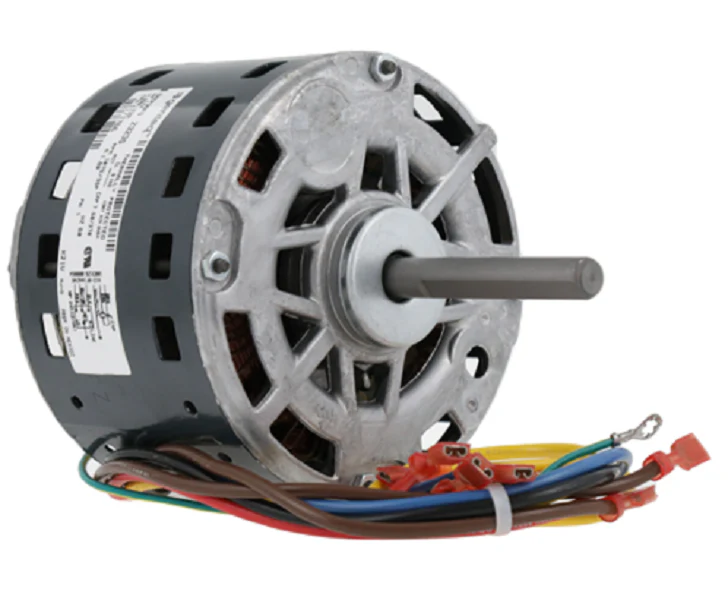

Heil Quaker ICP 1171766 Motor
The Heil Quaker ICP 1171766 Motor is a direct-drive PSC (Permanent Split Capacitor) blower motor engineered for high-static pressure applications in residential and light commercial HVAC systems. This 1/4 HP blower motor features a standard 48 NEMA frame size and operates on 208-230V single-phase power. With a 1075 RPM rating and 3-speed versatility, it provides precise airflow adjustments to match system demand. The sleeve bearing design ensures quiet operation, while the CCW (Counter-Clockwise) rotation and band mount configuration simplify field replacement in Heil, Quaker, and Inter City Products (ICP) air handlers or furnaces. Drawing 1.8 Amps, this direct drive motor is an efficient replacement for aging or seized induction motors, maintaining critical CFM requirements for optimal evaporator coil heat exchange.
Key Benefits:
- Broad Compatibility: Drop-in replacement for Heil Quaker 1171766 and various ICP OEM part numbers.
- Sleeve Bearing Maintenance: Designed for low-friction operation and reduced vibration within the blower housing.
- Multi-Speed Flexibility: 3-speed taps allow for varied airflow settings for heating and cooling cycles.
- NEMA 48 Frame: Standardized sizing ensures fitment with existing mounting brackets and rings.
Common Questions:
Can I use a 5 MFD capacitor with this motor?
Always verify the capacitor rating on the motor nameplate or technical data sheet; typical 1/4 HP PSC motors require a specific microfarad rating to prevent overheating the windings.
Is this motor reversible?
The 1171766 is factory-set for CCW rotation. Confirm your existing blower wheel rotation before installation to ensure proper airflow direction.
What is the benefit of a 3-speed motor over a single-speed?
It allows technicians to balance the system's static pressure by selecting the appropriate lead for either high-stage cooling or lower-stage heating requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
