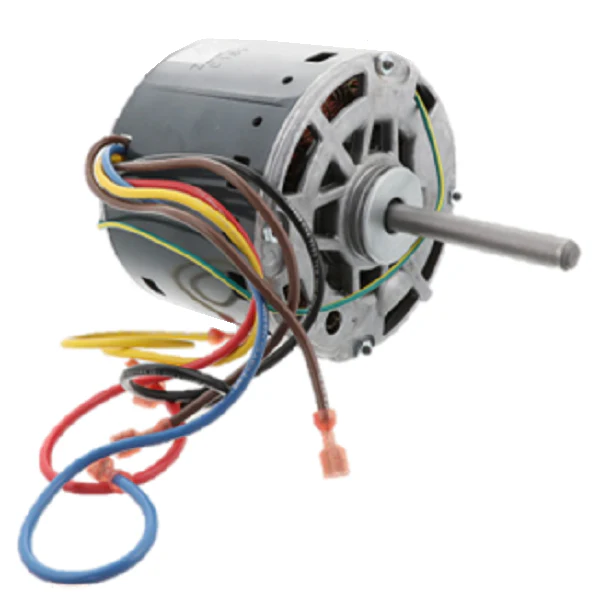

Heil Quaker ICP 1171720 Motor
The Heil Quaker ICP 1171720 Motor is a heavy-duty, 1/3 HP multi-speed blower motor engineered for precision airflow management in International Comfort Products (ICP) air handlers and fan coils. As a direct OEM replacement motor, this unit maintains the factory-specified performance curves required for the EBP and EBX series, as well as A2 and B2 fan coil models. Operating at 208-230V and 1075 RPM, this PSC (Permanent Split Capacitor) motor features a 48 NEMA frame and a 1/2-inch diameter shaft, ensuring a drop-in fit without the need for mounting modifications or bracket fabrication. Its 3-speed versatility allows for fine-tuning static pressure across different ductwork configurations, while the sleeve bearing design provides quiet, continuous-duty operation in residential and light commercial HVAC applications.
Technical professionals typically identify this part as a cross-reference for the Genteq 5KCP39KGS081S. With a 2.7 Amp draw and CCW (counterclockwise) rotation, it is specifically designed to handle the thermal loads of intensive heating and cooling cycles. Replacing a failing or high-amperage motor with this genuine ICP 1171720 blower motor prevents excessive "hunting" in the control board and protects the system's heat exchanger or evaporator coil from icing or overheating caused by inadequate CFM output. For a reliable repair that meets Heil, Tempstar, and Comfortmaker engineering standards, this motor is the industrial-grade solution.
Key Benefits for Technicians:
- Exact OEM Compatibility: Verified for use in EBX3600A1, EBXX3600A1, EBX3600A2, FSM2X3600A1, and FSM4X3600A1 units.
- Multi-Speed Flexibility: 3-speed taps provide adjustable airflow to match specific system static pressure requirements.
- Simplified Installation: Standard 48-frame motor with a band mount configuration allows for rapid field replacement.
- Industrial Build Quality: Features a thermally protected design and Class B insulation for stable operation in high-ambient air-over applications.
Common Questions:
What is the required capacitor for the ICP 1171720?
This motor typically requires a 15 MFD / 370 VAC run capacitor for optimal torque and energy efficiency. Always verify the capacitor rating on the existing motor's nameplate before installation.
Can I use this to replace an aftermarket motor?
Yes, as long as the 5KCP39KGS081S cross-reference or the physical specifications (1/3 HP, 208-230V, 1075 RPM, 48 Frame) match your current failed unit. Using this genuine Heil Quaker motor ensures the fan wheel operates at the correct pitch and velocity profile.
Does this motor include the mounting band?
This is the motor only; it is designed to fit your existing 5-5/8 inch diameter mounting band or cradle.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
