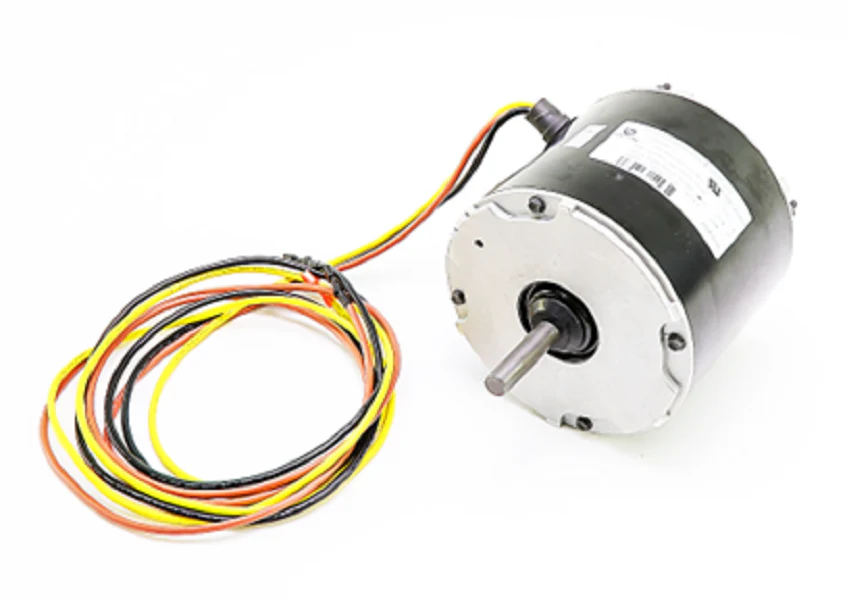

Heil Quaker ICP 1171551 Motor
The Heil Quaker ICP 1171551 Motor is a heavy-duty, 1/4 HP condenser fan motor engineered for high-voltage industrial and commercial HVAC applications requiring 460Vac single-phase power. Operating at a steady 1100 RPM single speed, this Permanent Split Capacitor (PSC) motor draws a low 0.8 Amps, ensuring efficient thermal management in high-static environments. Built on a 48Y NEMA frame size, it features a reliable sleeve bearing design and a thru-bolt mount configuration for secure installation within the condenser housing. This CW rotation motor is an essential direct replacement component for maintaining head pressure control and ensuring optimal heat transfer across the coils. Technical specifications such as the PSC motor design and robust housing make it a standard choice for contractors servicing ICP, Heil, and Quaker equipment. When performing a condenser fan motor replacement, verify the capacitor requirements and lead lengths to ensure a seamless HVAC motor installation.
- High-Voltage Compatibility: Specific 460V rating designed for commercial three-phase systems utilizing single-phase tap configurations.
- Standardized Fit: The 48Y frame and thru-bolt mounting allow for quick drop-in replacement without modified brackets.
- Operational Efficiency: Low amperage draw reduces total system energy consumption while maintaining necessary CFM.
- Durable Construction: Sleeve bearings provide quiet operation and are suited for vertical shaft-up or shaft-down condenser applications.
Common Questions
What is the rotation direction for the 1171551 motor?
This motor is lead-end clockwise (CW) rotation. Always check the fan blade pitch before installation to ensure proper airflow direction across the condenser coils.
Can I use a 230V motor to replace this 460V model?
No. Using a lower voltage motor on a 460Vac circuit will cause immediate winding failure. Always match the nameplate voltage exactly for safety and performance.
Does this motor include the run capacitor?
This is the motor only. It is recommended to install a new permanent split capacitor of the correct MFD rating when replacing the motor to prevent premature failure of the new windings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
