Heil Quaker ICP 1171435 Relay

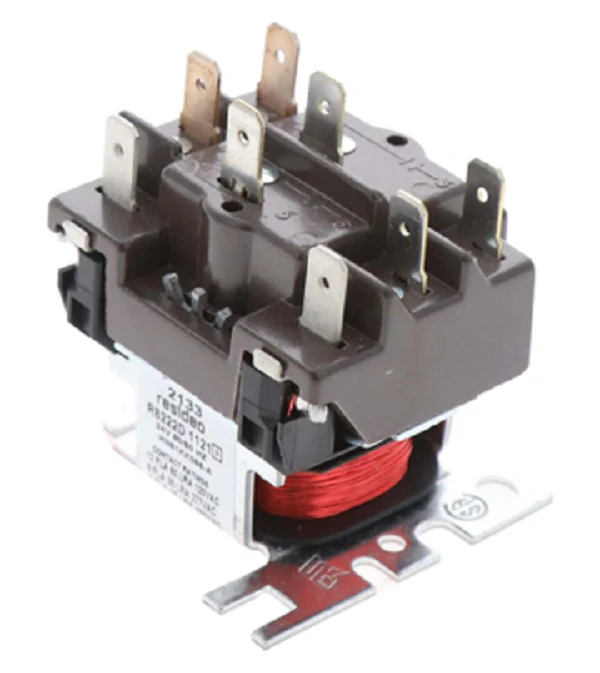

The Heil Quaker ICP 1171435 Relay is a heavy-duty 24v Relay DPDT designed for critical fan and furnace control applications across Carrier, Bryant, and Payne equipment. This Honeywell R8222D 1121 equivalent provides the reliable switching necessary for high-power circuits using a low-power signal. Recognized as a direct OEM replacement relay, the 1171435 is identical to HN61KK066, ensuring a drop-in fit without field modifications. Engineered for high-load inductive switching, it manages 12.0 Full Load Amperage (FLA) at 120V and maintains an robust 60.0 Locked Rotor Amperage (LRA) rating to survive intense motor startup cycles. Whether you are replacing a chatter-prone relay or addressing a 24V coil failure, this DPDT switching relay offers the multi-circuit versatility needed for complex HVAC wiring schematics. This part also effectively replaces legacy numbers HN61DC001, 45SN500080, and 24015000, making it a versatile addition to any service truck's inventory for managing fan motor master controls.
Key Benefits- Universal HVAC Compatibility: Directly replaces Heil Quaker, Carrier, and Payne relays, serving as the industry standard for HN61KK066 applications.
- High Inductive Load Rating: Supports up to 12A FLA and 60A LRA at 120VAC, providing sufficient overhead for single-speed and multi-speed blower motors.
- DPDT Configuration: Double Pole Double Throw design allows for independent control of two separate circuits, ideal for simultaneous fan and auxiliary component switching.
- Precision 24V Coil: Designed for stable operation at 50/60Hz, reducing the risk of contact bounce and electrical noise in the control circuit.
- Is the 1171435 interchangeable with the HN61KK066? Yes, these part numbers are technically identical and serve as direct cross-references for the same DPDT isolation relay.
- Can I use this relay for 277V applications? While common in 120V/240V systems, this relay is rated for 6.0 FLA at 277VAC, though we recommend verifying your specific motor's amperage draw against these specs.
- What causes these relays to fail? Most failures occur due to pitted contacts from high-cycling or a burnt coil resulting from a low-voltage condition in the 24V control transformer circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
