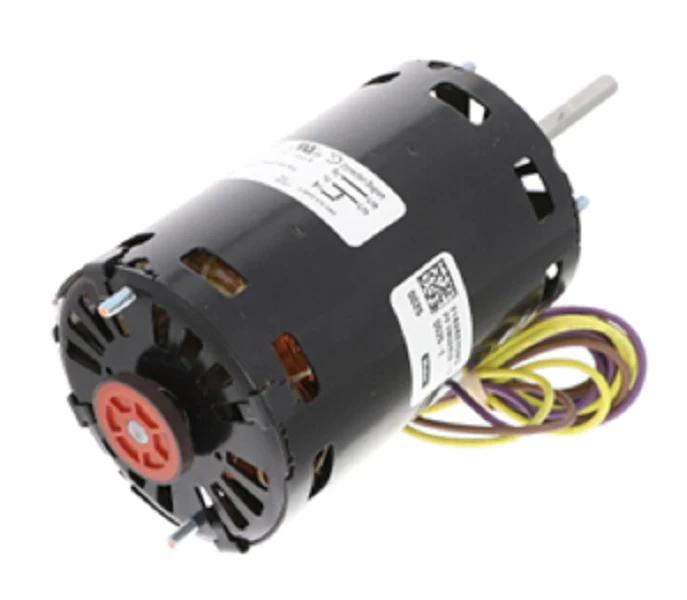

Heil Quaker ICP 1171348 Motor
The Heil Quaker ICP 1171348 inducermotor is a high-performance 1/16HP draft inducer engineered for precise compatibility with ICP, Heil, and Tempstar heating units. Operating at 208-230Vac, this Permanent Split Capacitor (PSC) motor delivers a consistent 3450 RPM, ensuring proper static pressure and flue gas venting throughout the heating cycle. Designed for the rigors of commercial and residential HVAC applications, it features ball bearings for reduced friction and extended component life versus standard sleeve bearing alternatives. The 0.57 Amp draw and CW rotation (lead end) conform to factory specifications for seamless drop-in replacement. Utilizing a thru-bolt mount configuration, this single-phase 1171348 motor simplifies field installation, allowing technicians to maintain system integrity and combustion efficiency without the need for mounting modifications.
Key Benefits for Technicians:
- Ball Bearing Construction: Offers superior thermal resistance and minimizes mechanical noise compared to bushings.
- Exact OEM Specifications: Matches the 1171348 inducer motor bolt pattern and electrical requirements for zero-latency turnover.
- Thermal Stability: Engineered to withstand high-ambient temperatures within the furnace cabinet or rooftop enclosure.
- Optimized Efficiency: The PSC motor design ensures high starting torque and lower running amperage for reliable ignition cycles.
Common Contractor Questions:
Is the 1171348 motor a direct swap for 115V units?
No, this is a 208-230V motor. Verifying line voltage at the control board or transformer is essential to prevent winding failure.
Does this motor include the fan wheel?
This part number refers specifically to the motor. Reusing the existing blower wheel or verifying the shaft diameter for a new wheel is recommended during replacement.
What causes premature failure in these inducer motors?
Most failures result from moisture backflow from the secondary heat exchanger or excessive heat due to restricted venting. Inspect the drainage system when installing this HVAC replacement motor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
