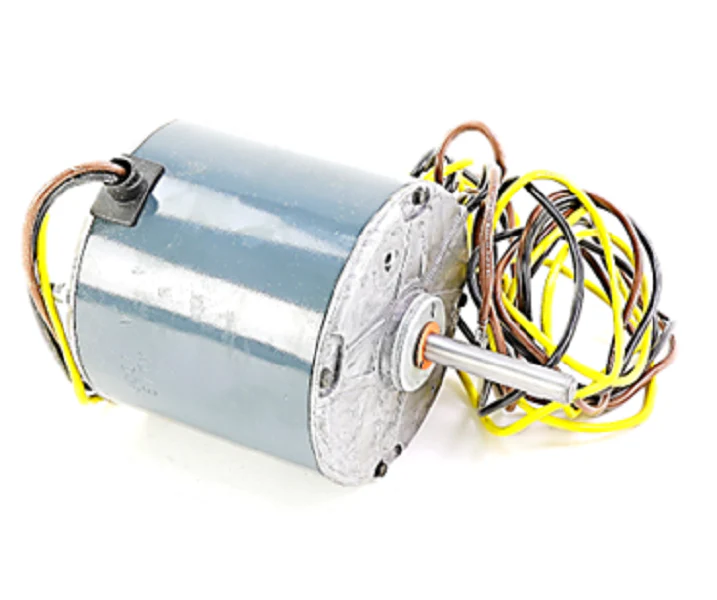

Heil Quaker ICP 1171342 Motor
The Heil Quaker ICP 1171342 Motor is a high-performance direct replacement condenser fan motor designed for demanding residential and light commercial HVAC applications. This 1/2 HP, 208-230V single-phase motor operates at a nominal 1050 RPM, providing the necessary torque and high-static pressure capabilities to maintain optimal heat rejection across the condenser coils. Built on a 48Y NEMA frame with a durable thru-bolt mount configuration, this PSC (Permanent Split Capacitor) motor ensures reliable startup and energy-efficient operation under varying load conditions. The inclusion of ball bearings enhances the unit's longevity in high-ambient outdoor environments, resisting the axial and radial stresses typical of vertical or horizontal condenser fan orientations. Designed with clockwise (CW) rotation, this condenser motor is indexed to meet precise OEM performance standards for ICP, Heil, and Quaker equipment, ensuring a seamless drop-in fit for technicians performing critical AC unit motor repairs.
Key Benefits for HVAC Professionals- Optimized Heat Transfer: The 1050 RPM single-speed design ensures consistent airflow for effective refrigerant cooling.
- Industrial-Grade Construction: Ball bearing design provides superior durability compared to standard sleeve bearings.
- Precision Fit: 48Y frame and thru-bolt mounting simplify the installation process in Heil Quaker condenser units.
- Energy Efficiency: Permanent Split Capacitor (PSC) technology reduces amperage draw (1.7 Amps) and operational costs.
- CW Rotation: Engineered for specific fan blade pitch requirements to prevent system overheating.
What are the signs that a Heil Quaker condenser motor needs replacement?Technicians often find the outdoor fan not spinning while the compressor is humming, or the unit repeatedly tripping the circuit breaker. Grinding or squealing noises usually point to worn ball bearings within the 1171342 motor housing.
Can I use a 5 MFD capacitor with this 1/2 HP motor?Always refer to the motor nameplate for specific capacitor requirements. Using an incorrectly sized run capacitor can lead to winding failure or improper torque, especially in 208-230V systems.
Is this ICP 1171342 motor compatible with other brands?Yes, as an ICP-manufactured part, this motor is a frequent replacement for various brands under the International Comfort Products umbrella, including Comfortmaker, Tempstar, and KeepRite, provided the RPM and frame size match.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
