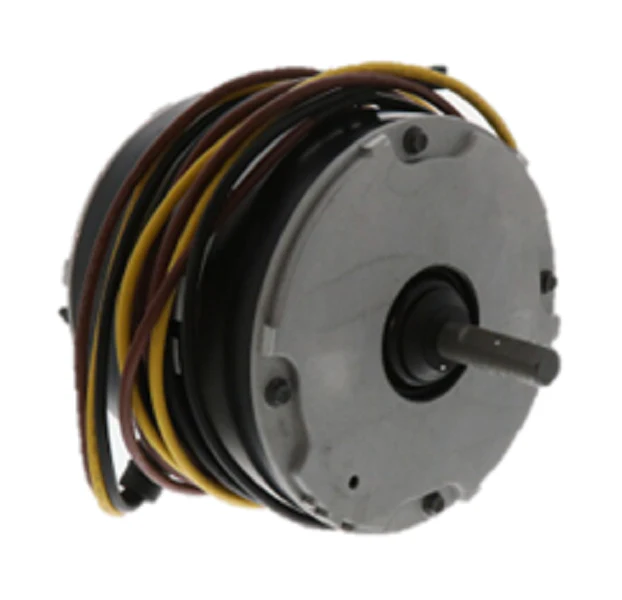

Heil Quaker ICP 1171335 Motor
The Heil Quaker ICP 1171335 Motor is a high-performance 1/4 HP condenser fan motor designed for reliable thermal exchange in residential and light commercial HVAC systems. This 208-230V single phase motor operates at a fixed speed of 1100 RPM, drawing a consistent 1.5 Amps to ensure optimal efficiency. Built on a 48Y NEMA frame size, it features a sleeve bearing design and a thru-bolt mount for secure installation within the condenser housing. As a Permanent Split Capacitor (PSC) motor, it provides the high starting torque required for heavy-duty fan blades while maintaining CW (clockwise) rotation for specific airflow configurations.
Replacing an aging or failed HVAC condenser motor with this genuine ICP 1171335 replacement part restores factory-spec airflow, protecting the compressor from head pressure spikes. Technicians will find the 5-5/8 inch diameter and standard mounting profile compatible with a wide range of Heil, Tempstar, and Comfortmaker equipment. This motor is engineered for long-term outdoor exposure, managing the heat dissipation needs of the refrigerant cycle under high load conditions without premature degradation.
Key Benefits:- OEM Compatibility: Precision-engineered for a direct fit in ICP, Heil, and Tempstar condenser units.
- Stable Performance: Fixed 1100 RPM operation ensures consistent static pressure and cooling capacity.
- Optimized Efficiency: The 1/4 HP PSC design balances power consumption with high-torque output.
- Simplified Installation: Standard 48Y frame and thru-bolt pattern facilitate quick field replacements.
What is the correct rotation for the 1171335 motor?
This specific motor is designed for CW (Clockwise) rotation when viewed from the lead end, matching the pitch of standard ICP condenser fan blades.
Can I use a different capacitor with this motor?
It is critical to use the microfarad (MFD) rating specified on the 1171335 motor nameplate to ensure the Permanent Split Capacitor circuit operates within design parameters.
Is the 48Y frame size a standard fit?
Yes, the 48Y NEMA frame is the industry standard for 5-5/8 inch diameter motors, making it compatible with most universal and OEM mounting brackets.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
