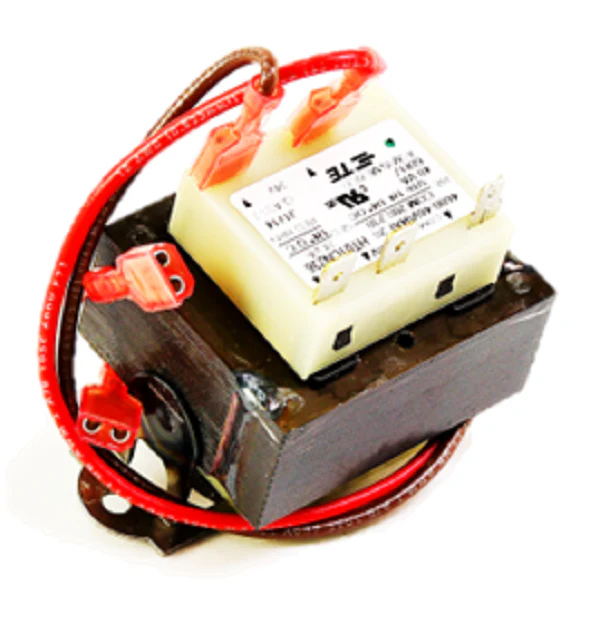

Heil Quaker ICP 1170676 Transformer
The Heil Quaker ICP 1170676 is a professional-grade 40VA HVAC transformer designed for reliable step-down voltage conversion in residential and light commercial equipment. This multi-tap control transformer features a primary input of 208/230V and a secondary output of 24V, making it a critical component for powering 24V control circuits, including contactors, relays, and digital thermostats. As a direct OEM replacement transformer, it ensures precise electrical compatibility and physical fitment within original Heil, Quaker, Tempstar, and Comfortmaker air handlers and furnaces. The robust 40VA power rating provides sufficient overhead for standard low-voltage demands while maintaining thermal stability. For technicians performing HVAC control circuit troubleshooting, this unit serves as a dependable solution for repairing 24V secondary power failures, ensuring the system?s logic and safety strings remain energized throughout the duty cycle.
Key Benefits
- Broad Compatibility: Genuine ICP 1170676 replacement part engineered specifically for ICP family brands.
- Reliable Power Delivery: Provides a stable 24V secondary output to prevent chatter in contactors and solenoid valves.
- Durable Construction: Built to withstand the high ambient temperatures found in electrical cabinets and furnace vestibules.
- Standardized Mounting: Features a footprint designed for quick installation during service calls, reducing labor time.
Common Questions
Can I use this transformer to replace a 30VA unit?
Yes, moving from a 30VA to a 40VA transformer is an acceptable upgrade as it provides a higher load capacity for the control circuit without over-sizing the voltage output.
Does this unit support both 208V and 230V inputs?
Yes, this multi-tap transformer is designed to handle common primary voltages found in split system air conditioners and heat pumps.
Why is my 24V control circuit fuse blowing repeatedly?
While a failed transformer is a possibility, frequent fuse trips often indicate a short in the 24V wiring or a failing contactor coil. Ensure you verify the VA draw of all accessories before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
