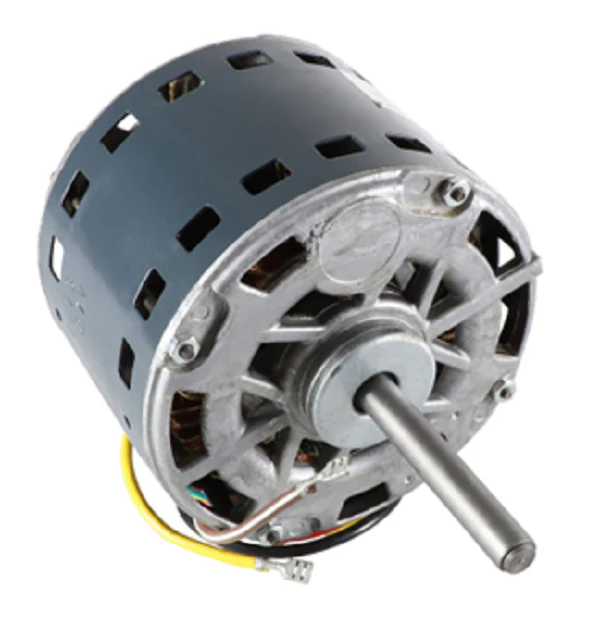

Heil Quaker ICP 1170646 Motor
The Heil Quaker ICP 1170646 Motor is a heavy-duty 1/3 HP blower motor engineered for specific HVAC air handler and furnace applications requiring a 48 NEMA frame size. Operating at 208-230V on a single-phase system, this Permanent Split Capacitor (PSC) motor delivers a steady 1110 RPM and supports 2-speed operation, allowing for precise airflow adjustment based on system demand. Designed with a sleeve bearing system and a band mount configuration, it ensures quiet operation and reduced vibration transfer within the cabinet. Drawing only 2 amps, this CW rotation motor provides an efficient replacement solution for maintaining static pressure requirements in aging Heil, Quaker, and Inter City Products units.
- Optimized Airflow Control: Dual-speed capability ensures the system can bridge the gap between high-demand cooling and lower-stage heating or continuous fan modes.
- NEMA 48 Frame Compatibility: Standardized housing dimensions facilitate a direct-fit install for contractors using existing band mount hardware.
- Reduced Electrical Load: The low 2-amp draw minimizes the strain on the integrated furnace control (IFC) or blower relay.
- Durable PSC Design: Utilizes a permanent split capacitor for consistent torque and higher electrical efficiency during long run cycles.
Common Questions for the Heil Quaker 1170646
What capacitor is required for the ICP 1170646 motor?
This 1/3 HP PSC motor typically requires a 5 MFD / 370V run capacitor; however, always verify the rating on the specific motor nameplate before installation.
Can I use this 1170646 motor to replace a 115V blower motor?
No, this unit is rated specifically for 208-230Vac. Applying 115V will result in torque failure, while applying 460V will cause immediate winding failure.
What does the CW rotation signify on this model?
The CW rotation indicates clockwise movement when viewing the motor from the lead end (opposite the shaft), making it essential to match the blower wheel pitch for proper CFM output.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $403.54
-65%$403.54
$141.24Heil Quaker ICP 1170646 Motor
The Heil Quaker ICP 1170646 Motor is a heavy-duty 1/3 HP blower motor engineered for specific HVAC air handler and furnace applications requiring a 48 NEMA frame size. Operating at 208-230V on a single-phase system, this Permanent Split Capacitor (PSC) motor delivers a steady 1110 RPM and supports 2-speed operation, allowing for precise airflow adjustment based on system demand. Designed with a sleeve bearing system and a band mount configuration, it ensures quiet operation and reduced vibration transfer within the cabinet. Drawing only 2 amps, this CW rotation motor provides an efficient replacement solution for maintaining static pressure requirements in aging Heil, Quaker, and Inter City Products units.
- Optimized Airflow Control: Dual-speed capability ensures the system can bridge the gap between high-demand cooling and lower-stage heating or continuous fan modes.
- NEMA 48 Frame Compatibility: Standardized housing dimensions facilitate a direct-fit install for contractors using existing band mount hardware.
- Reduced Electrical Load: The low 2-amp draw minimizes the strain on the integrated furnace control (IFC) or blower relay.
- Durable PSC Design: Utilizes a permanent split capacitor for consistent torque and higher electrical efficiency during long run cycles.
Common Questions for the Heil Quaker 1170646
What capacitor is required for the ICP 1170646 motor?
This 1/3 HP PSC motor typically requires a 5 MFD / 370V run capacitor; however, always verify the rating on the specific motor nameplate before installation.
Can I use this 1170646 motor to replace a 115V blower motor?
No, this unit is rated specifically for 208-230Vac. Applying 115V will result in torque failure, while applying 460V will cause immediate winding failure.
What does the CW rotation signify on this model?
The CW rotation indicates clockwise movement when viewing the motor from the lead end (opposite the shaft), making it essential to match the blower wheel pitch for proper CFM output.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
