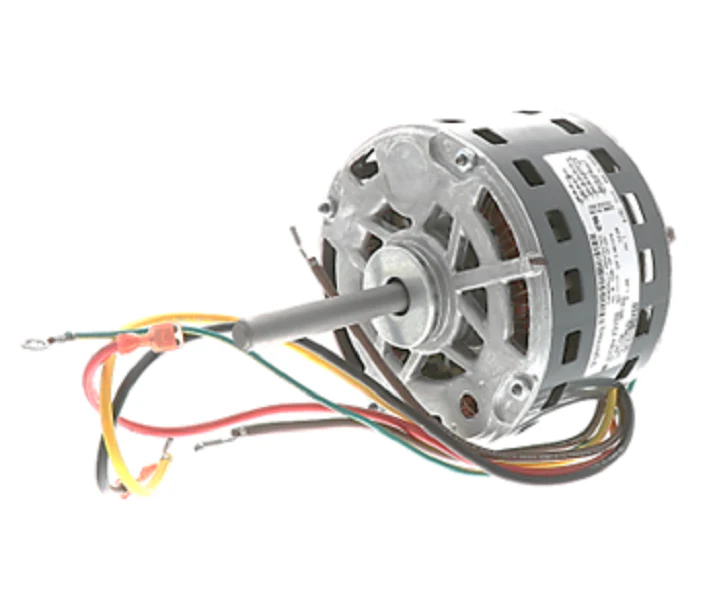

Heil Quaker ICP 1170645 Motor
The Heil Quaker ICP 1170645 Motor is a heavy-duty OEM replacement blower motor designed for high-static residential and light commercial HVAC applications. Engineered as a Permanent Split Capacitor (PSC) motor, this unit operates at 1/5 HP on a 208-230V single-phase power supply. Rated for 950 RPM with 2-speed versatility, it allows for precise airflow modulation to maintain system efficiency. Built on a 48 NEMA frame size, it features a sleeve bearing design for quieter operation and a band mount configuration for straightforward installation in compatible blower housings. With a 1.4 Amp draw and Clockwise (CW) rotation, this motor is a drop-in solution for ICP furnace motor replacement and Heil air handler motor repairs. Its robust construction ensures reliable performance under continuous duty cycles, making it the preferred 1170645 blower motor for contractors prioritizing internal component compatibility and torque consistency in low-profile air moving equipment.
Technical Specifications & Key Benefits
- Direct OEM Match: Ensures seamless integration with Heil, Quaker, and ICP internal wiring harnesses.
- Multi-Speed Flexibility: 2-speed capability allows for optimized climate control and CFM adjustments.
- Quiet Operation: Precision-engineered sleeve bearings reduce vibration and decibel levels during startup and high-speed operation.
- High Efficiency: PSC design optimizes amperage draw (1.4A) to reduce operational costs and thermal load on the motor.
- Standardized Fitment: 48 Frame size and band mounting offer universal compatibility across a wide range of ICP-branded air handlers and furnaces.
Common Installation Questions
What is the rotation direction for the 1170645 motor?
This motor is configured for Clockwise (CW) rotation. Always verify the lead end orientation of your existing blower wheel to ensure compatibility with your housing setup.
Can I use a different capacitor than what is specified?
For optimal winding life and thermal protection, you must use a capacitor that matches the microfarad (MFD) rating specified on the nameplate of this PSC motor.
Is this motor compatible with 115V systems?
No, this is a 208-230Vac single-phase motor. Attempting to run this unit on 115V current will result in insufficient torque and eventual winding failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
