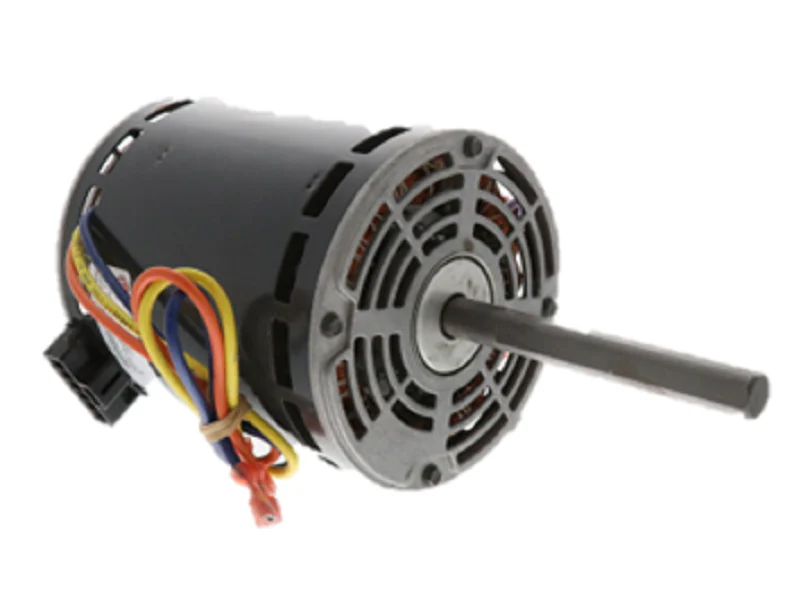

Heil Quaker ICP 1113219 Motor
The Heil Quaker ICP 1113219 Blower Motor is a high-performance 1 HP replacement motor designed for heavy-duty HVAC applications. Operating at 460Vac single phase, this PSC motor (Permanent Split Capacitor) delivers a consistent 1000 RPM across 4 speed settings, providing precise airflow control for complex air handling units. Built on a 48 NEMA frame size with a 5/8-inch shaft diameter and rolled steel construction, it is engineered to withstand the thermal demands of commercial environments. This CCW rotation motor utilizes sleeve bearings for quiet operation and a band mount configuration for a secure, vibration-resistant fit. Technicians should verify that the existing 20/370 capacitor is in good standing during the swap to ensure optimal starting torque and 2.12 Amp FLA efficiency.
- Multi-Speed Versatility: 4-speed capability allows for optimized static pressure management.
- Industrial Build: Rolled steel frame and aluminum flange provide superior corrosion resistance.
- High-Voltage Efficiency: Optimized for 460V systems, reducing current draw to 2.12 Amps.
- Broad Compatibility: Direct OEM replacement for several ICP, Heil, and Tempstar models.
Common Questions
Is this a direct replacement for my 460V air handler?
Yes, if your current unit specifies the ICP 1113219 or manufacturer part number K55HXGRG8370. Always confirm the 48 frame size and band mount compatibility before installation.
Does this motor include the run capacitor?
This motor is a permanent split capacitor design and requires a 20 MFD / 370V capacitor for operation, which is typically sold separately.
Can I use this motor in a 230V application?
No. This motor is strictly rated for 460Vac. Attempting to run this on 230V or 208V will result in insufficient torque and eventual winding failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $502.59
-65%$502.59
$175.91Heil Quaker ICP 1113219 Motor
The Heil Quaker ICP 1113219 Blower Motor is a high-performance 1 HP replacement motor designed for heavy-duty HVAC applications. Operating at 460Vac single phase, this PSC motor (Permanent Split Capacitor) delivers a consistent 1000 RPM across 4 speed settings, providing precise airflow control for complex air handling units. Built on a 48 NEMA frame size with a 5/8-inch shaft diameter and rolled steel construction, it is engineered to withstand the thermal demands of commercial environments. This CCW rotation motor utilizes sleeve bearings for quiet operation and a band mount configuration for a secure, vibration-resistant fit. Technicians should verify that the existing 20/370 capacitor is in good standing during the swap to ensure optimal starting torque and 2.12 Amp FLA efficiency.
- Multi-Speed Versatility: 4-speed capability allows for optimized static pressure management.
- Industrial Build: Rolled steel frame and aluminum flange provide superior corrosion resistance.
- High-Voltage Efficiency: Optimized for 460V systems, reducing current draw to 2.12 Amps.
- Broad Compatibility: Direct OEM replacement for several ICP, Heil, and Tempstar models.
Common Questions
Is this a direct replacement for my 460V air handler?
Yes, if your current unit specifies the ICP 1113219 or manufacturer part number K55HXGRG8370. Always confirm the 48 frame size and band mount compatibility before installation.
Does this motor include the run capacitor?
This motor is a permanent split capacitor design and requires a 20 MFD / 370V capacitor for operation, which is typically sold separately.
Can I use this motor in a 230V application?
No. This motor is strictly rated for 460Vac. Attempting to run this on 230V or 208V will result in insufficient torque and eventual winding failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
