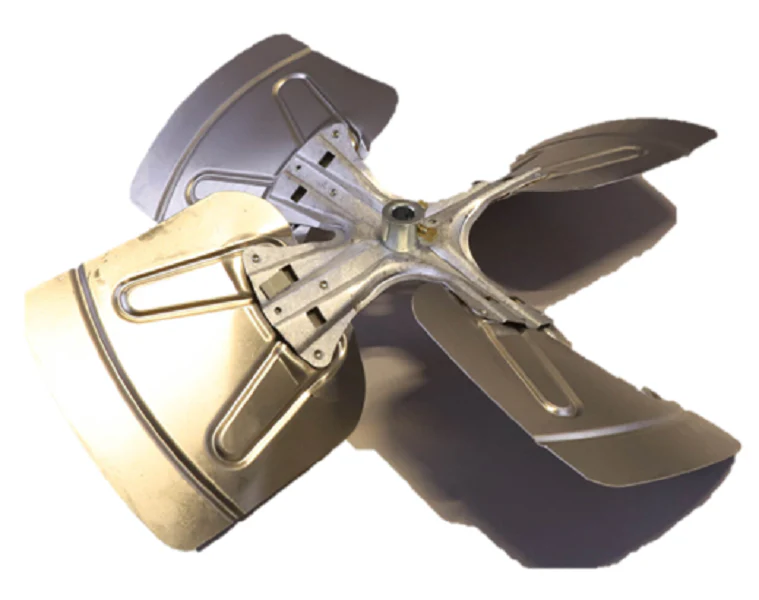

Heil Quaker ICP 1110695 Fan Blade
Professional-grade Heil Quaker ICP 1110695 Fan Blade is a critical replacement component for residential and commercial condensing units. This 22-inch diameter fan blade is engineered with a 34-degree pitch and 4-blade configuration to optimize static pressure and airflow across the coil. Designed for systems requiring CCW rotation (counter-clockwise), this blade features a 5/8-inch bore specifically located on the intake side for precise motor shaft alignment. As an authentic ICP replacement part, this condenser fan blade ensures drop-in compatibility with various Heil, Comfortmaker, and Tempstar models, maintaining factory-spec HVAC performance and heat transfer efficiency. The heavy-duty construction is built to withstand high-velocity operation in demanding outdoor environments, minimizing vibration and motor bearing wear. Verify your motor rotation and shaft size to ensure a perfect fit for your specific HVAC blower assembly.
Key Benefits
- Optimized Airflow: The 34-degree pitch angle provides maximum CFM delivery while maintaining balanced energy consumption.
- Durable Construction: High-quality materials resist corrosion and mechanical stress in outdoor condensing units.
- Precise Fitment: Standard 5/8" bore and intake-side hub placement ensure secured fastening to central AC and heat pump motors.
- OEM Standards: Engineered as a direct replacement for 1110695, eliminating the need for field modifications or bracket adjustments.
Common Questions
How do I determine the rotation for the 1110695 blade?
This blade is rated for CCW rotation. To confirm, look at the discharge side of the fan; the blades must rotate counter-clockwise to pull or push air correctly through the coil.
Will this fan blade fit a 1/2-inch motor shaft?
No, this specific part is manufactured with a 5/8-inch bore. If your motor has a 1/2-inch shaft, you will require a different part number or a compatible shaft bushing.
What happens if I install a blade with a different pitch?
Using a pitch other than 34 degrees can overload the fan motor or reduce airflow, leading to higher head pressures and potential compressor failure. Always match the 1110695 specifications exactly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
